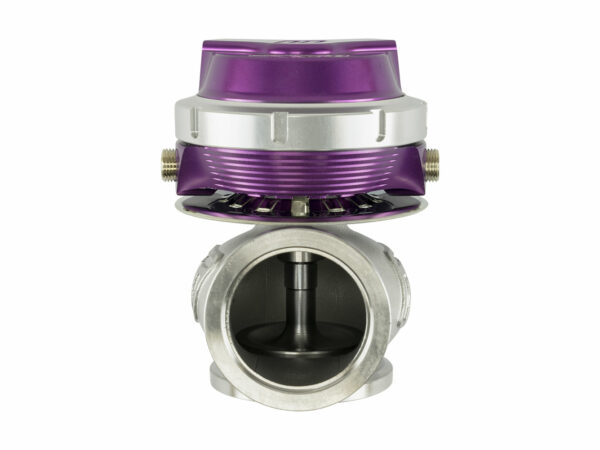

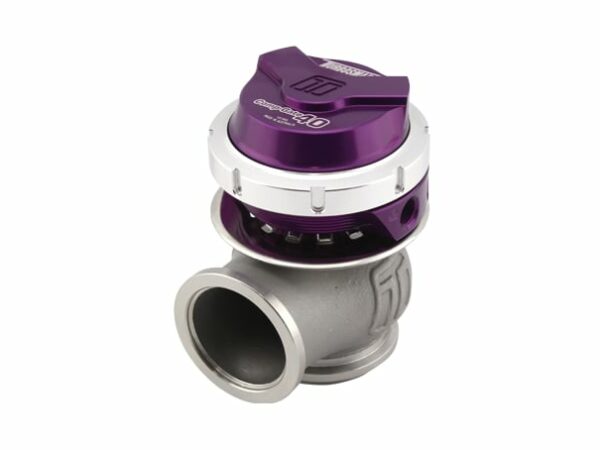

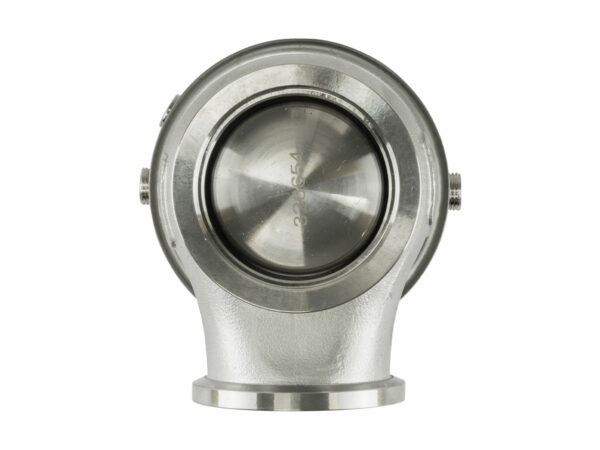

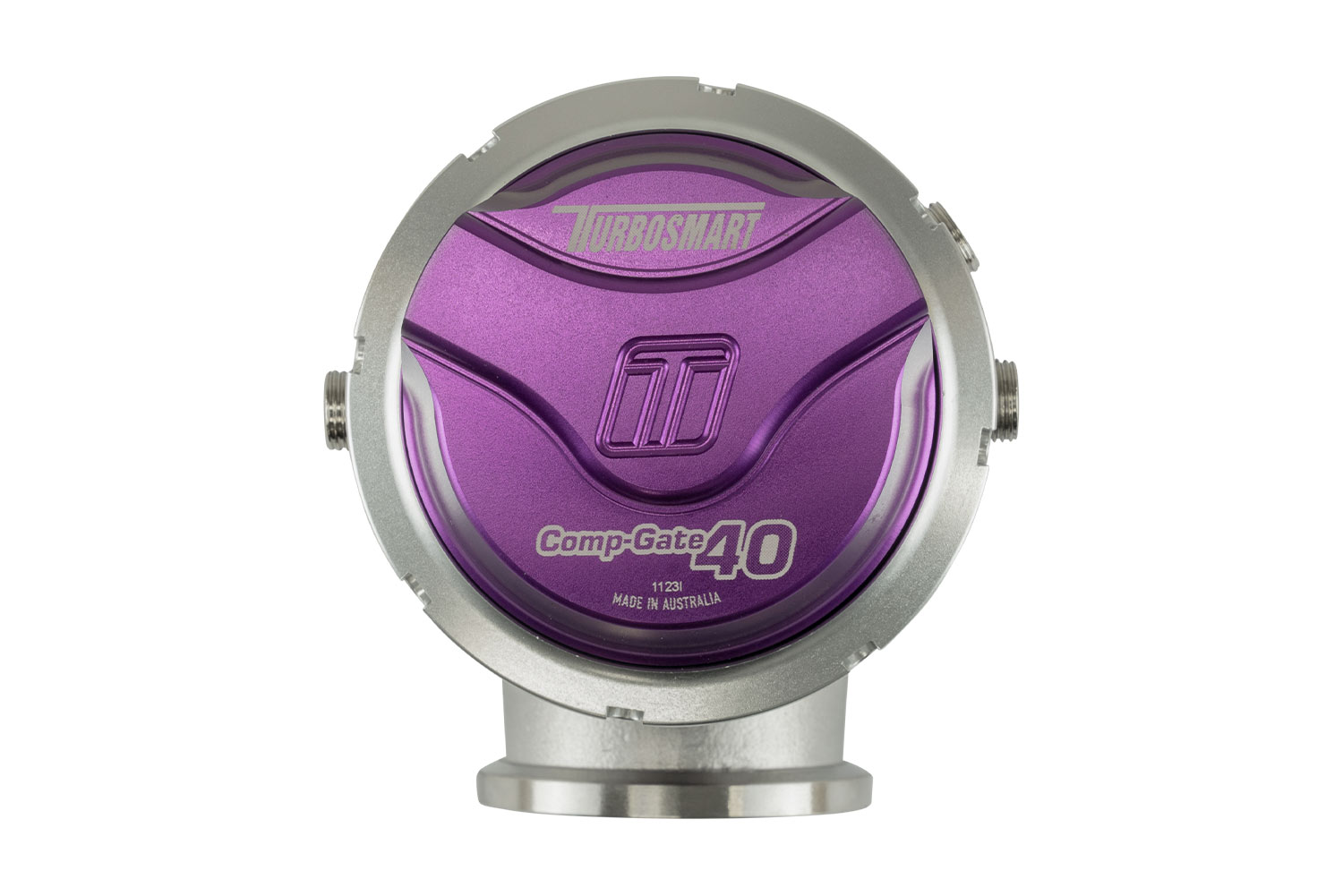

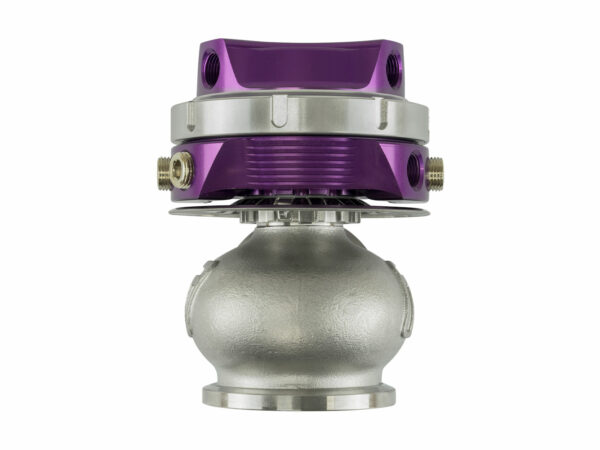

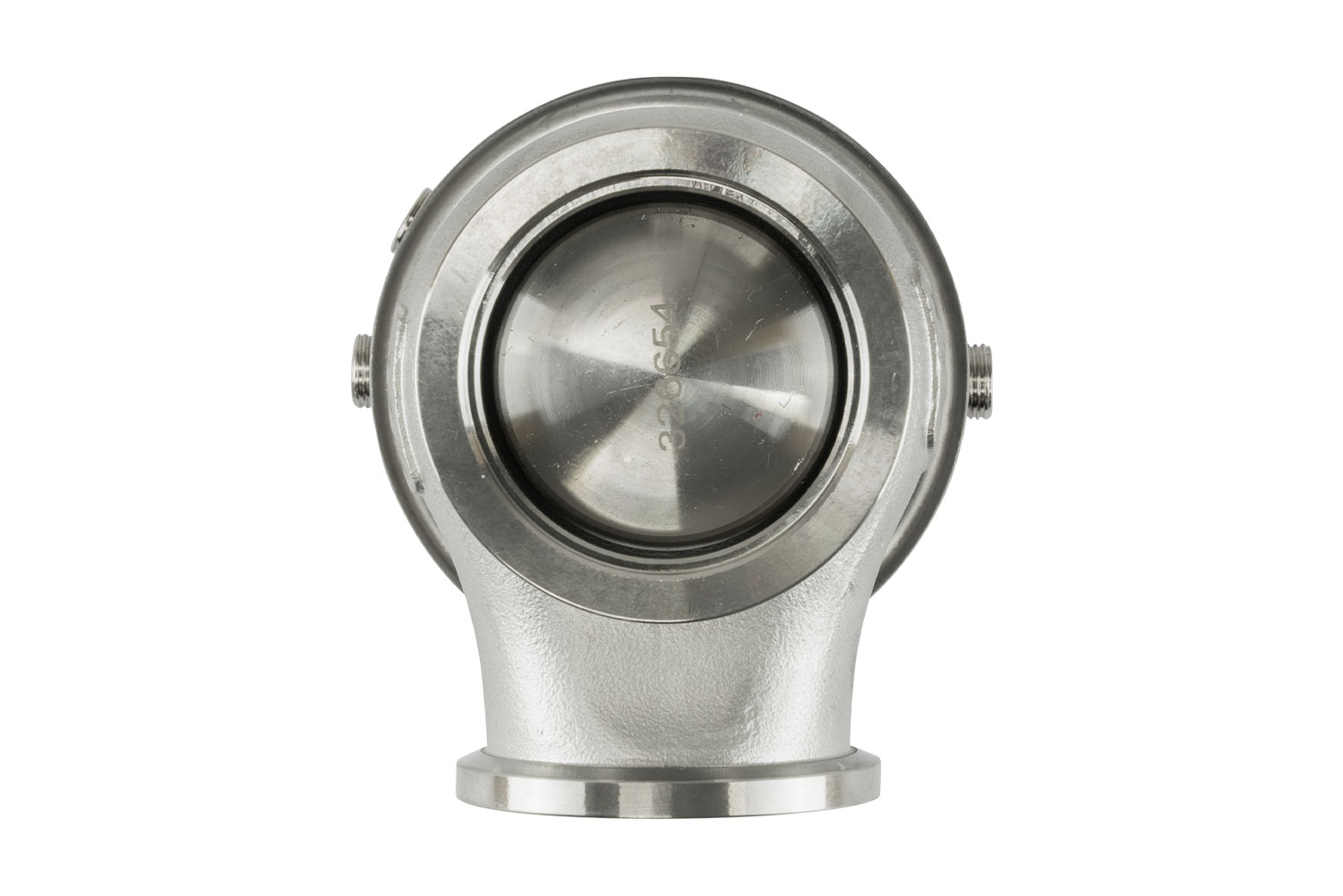

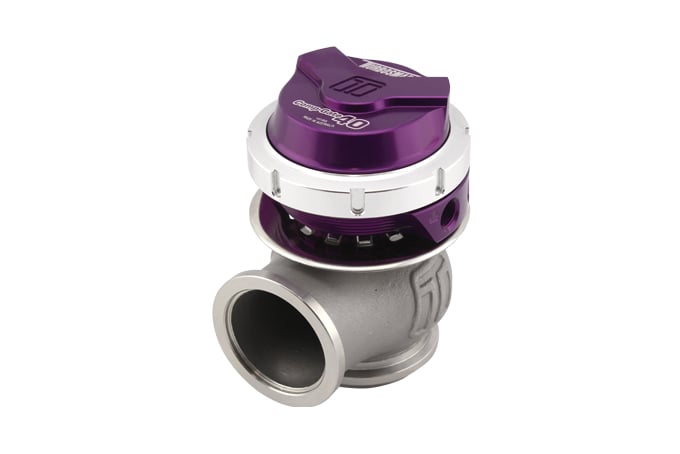

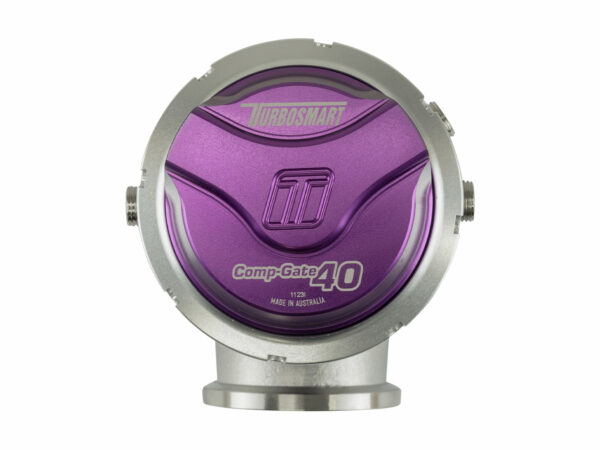

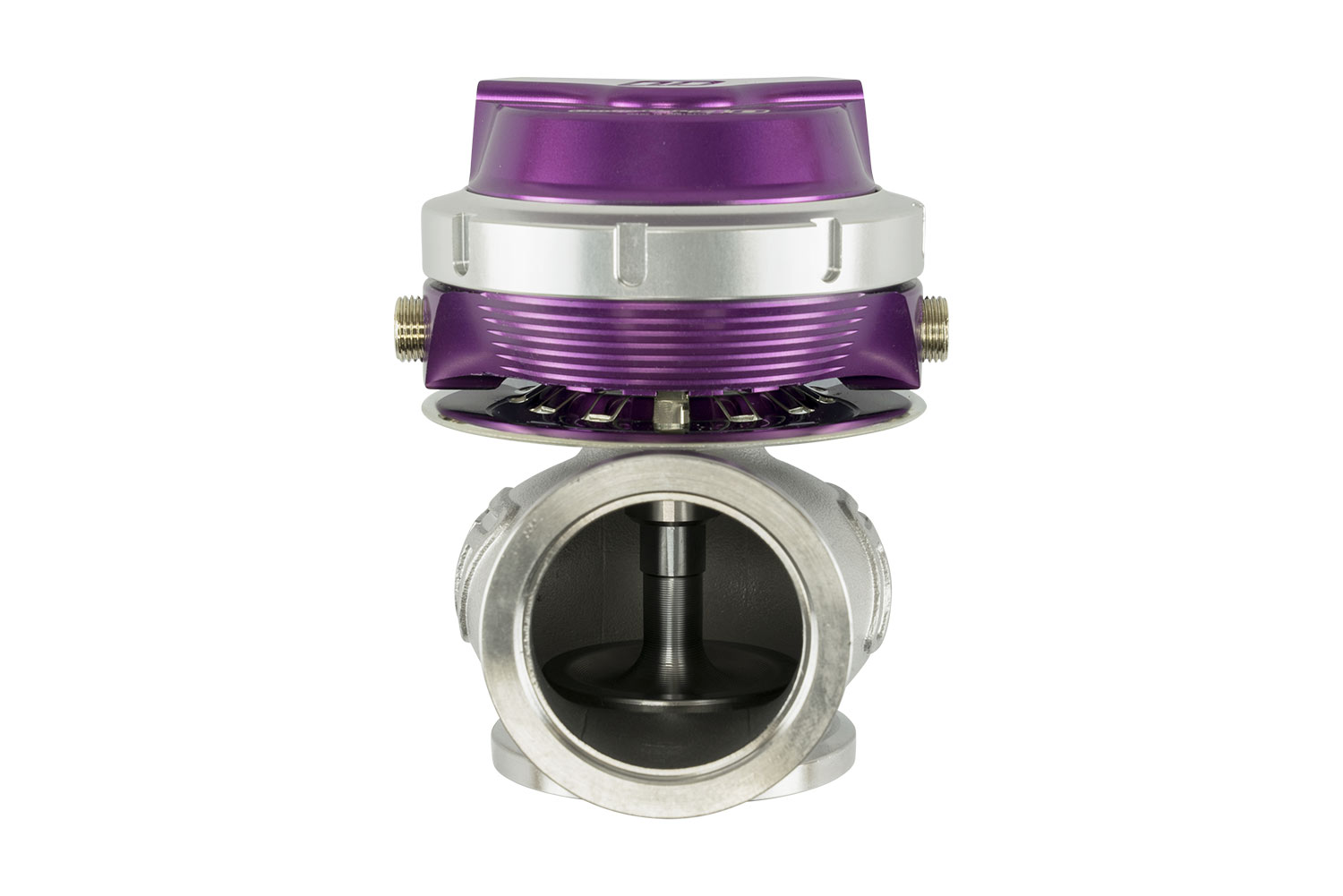

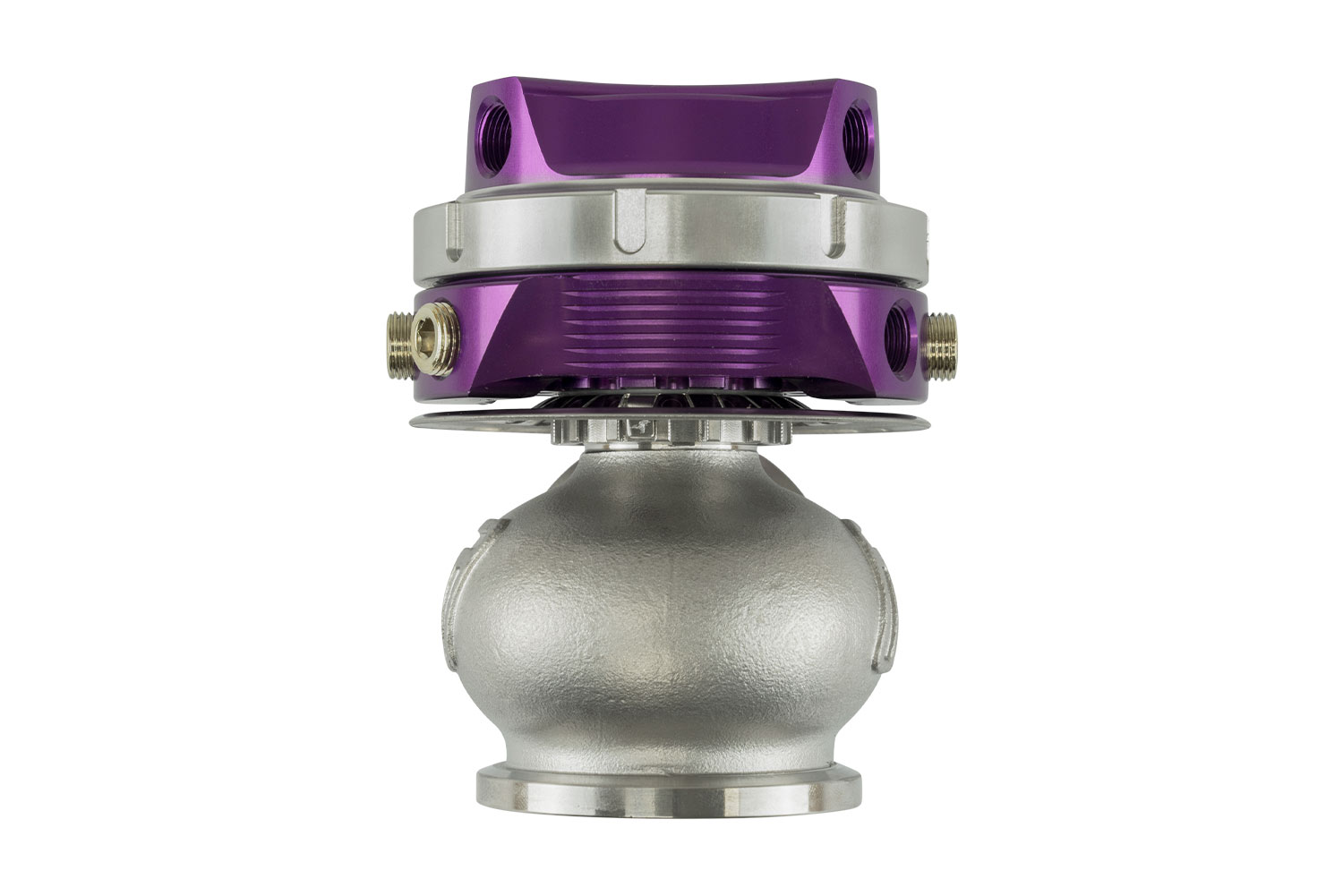

GenV CompGate40 14psi External Wastegate (Purple)

Name: GenV CompGate40 14psi External Wastegate (Purple)
SKU: TS-0552-1013
Price: 394.39 USD
Availability: BackOrder

$394.39USD (Excl. Sales Tax)

TS-0552-1013

The GenV WG40 CompGate40 External Wastegate is a Motorsport-proven, cost-effective external wastegate – The highest-flowing wastegate. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV Range has more features, options and performance than any other gate. The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management.

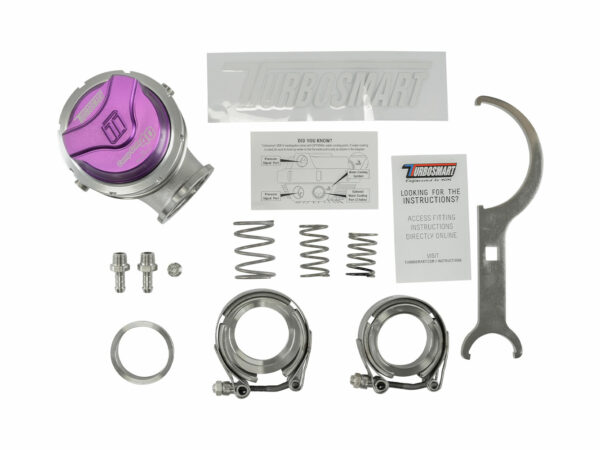

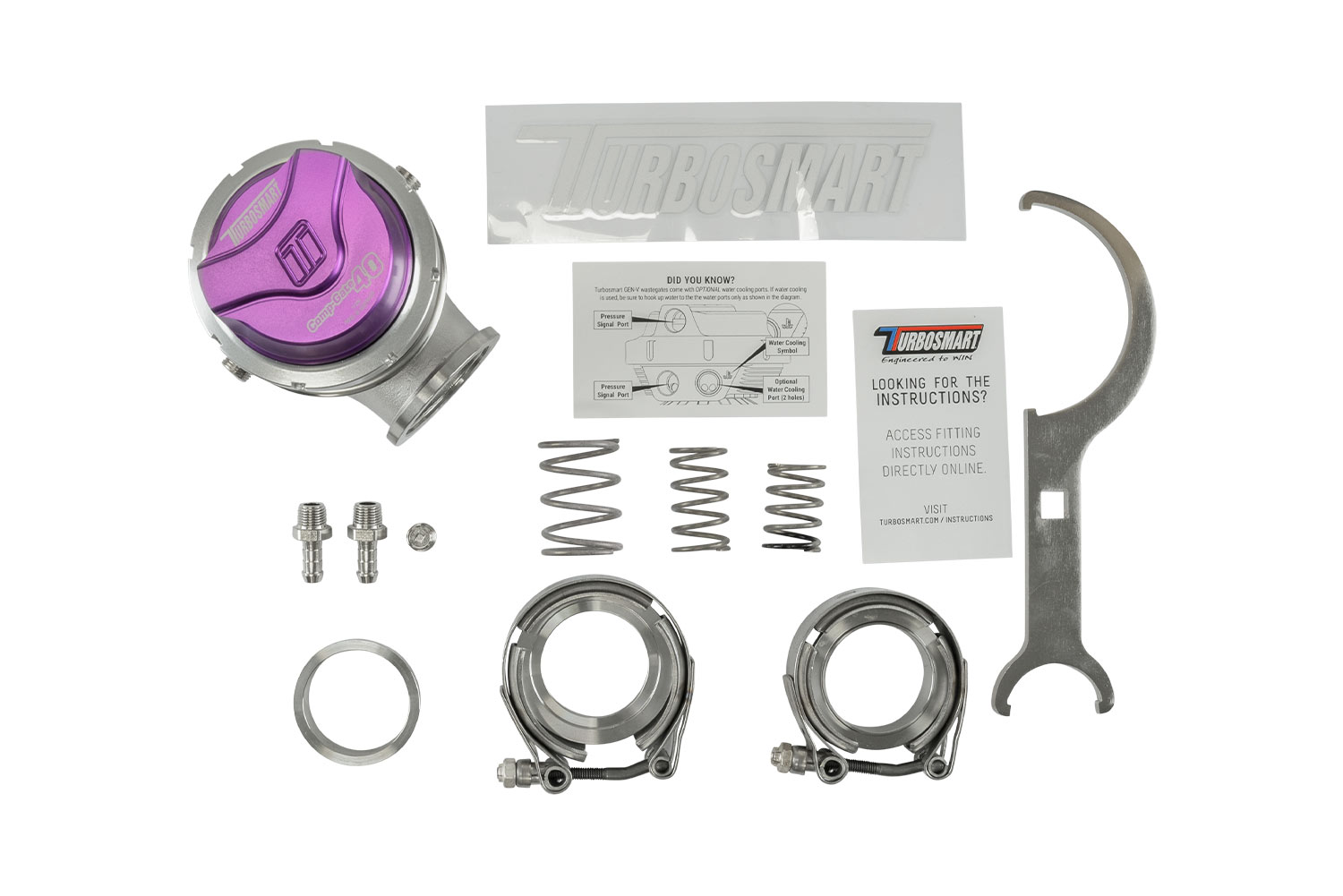

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red, Purple and sleeper colours
Optional Wastegate Position Sensor Upgrade
Compressed Gas (ex: Co2) Version
Motorsport Version (CFD driven Heat sink design)
HP (High-Pressure Version) Up to 50psi
eWG (Electronic Actuated) Version

Features
Class Leading, Thermal Performance
Class Leading, CFD and Bench-Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide and High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps

Installation guide

Data sheet

Important legal notice (US)

WARNING - Proposition 65 Compliance Statement:

It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Important Emissions Note:

This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.

What is the first rule of boost control?
Ensure you have an over-boost cut-out. This safety feature is built into all factory, aftermarket and programmable ECUs. Make sure it is set at a sensible and reasonable limit. Increasing the boost will put more load on your engine, and there is another tune-related factory you must always consider. If in any doubt, speak with a professional tuner/calibrator.

Can I use this on any turbocharged engine?
External Wastegates are used on vehicles fitted with turbochargers that do not have an internal wastegate actuator. In most instances, external wastegates are custom-fitted items and require modifications to the factory exhaust manifold or a custom / specifically manufactured manifold to suit an external wastegate.

What is a GenV Wastegate?
A GenV Wastegate is a 5th Generation External Wastegate from Turbosmart. Turbosmart released the GenV range at the SEMA Show in 2017 and used several features never before seen on a wastegate, including rotating actuator housing, ceramic isolators, multi-angle machined valve seats and interchangeable actuator housings.

Do I have to use the liquid cooling ports?
No. The GenV External Wastegate boasts several design features, which means it can tolerate higher temperatures for longer than its peers. The liquid cooling is simply there in case you wish to use it, or are one of the very few who need to.

Why Does the Actuator Housing Rotate?
So you can route your reference hoses any way you like. The GenV external wastegate range is designed with an infinitely clock-able actuator housing so that the shortest, most convenient, and most suitable (temperature, etc.) route can be set up for the reference lines.

How do I change the springs?
You will need the locking collar tool supplied in the box, and you will also need to apply physical force to the top cap of the actuator. Applying force counteracts the preload applied with these are assembled in the diaphragm and is a design feature of the product. Attempting to unlock the collar without this force will likely damage the collar and the actuator.

What size are the reference ports?
1/8NPT. Both the liquid cooling and the boost control reference ports are 1/8NPT. The GenV External Wastegates are delivered with a full hose tail and blanking fitting kit, which will get you going. However, you can use adaptors for AN or push lock fittings for more advanced installations.

This is ‘X’ psi, but I want to run a different amount of boost than that – Which gate should I get?
The pressure rating in the description of a GenV external wastegate is the base mechanical pressure, and we include all other springs in the box. You have base mechanical spring options from 3psi up to 26psi. Note, however, that this is just the lowest the gate can be set for, and with manipulation of the reference signal via a boost controller, you can generally achieve 2-3X the base pressure.
