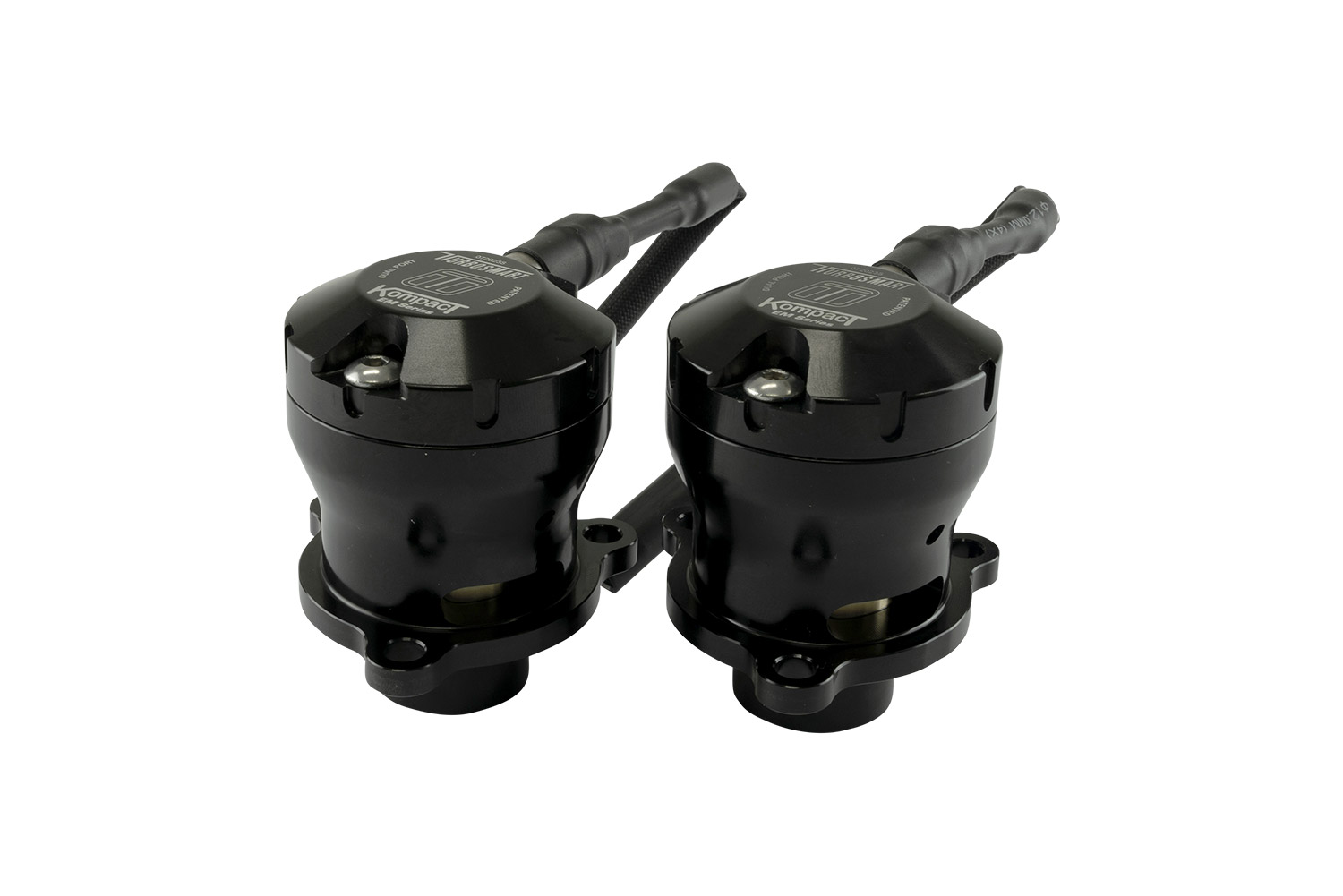

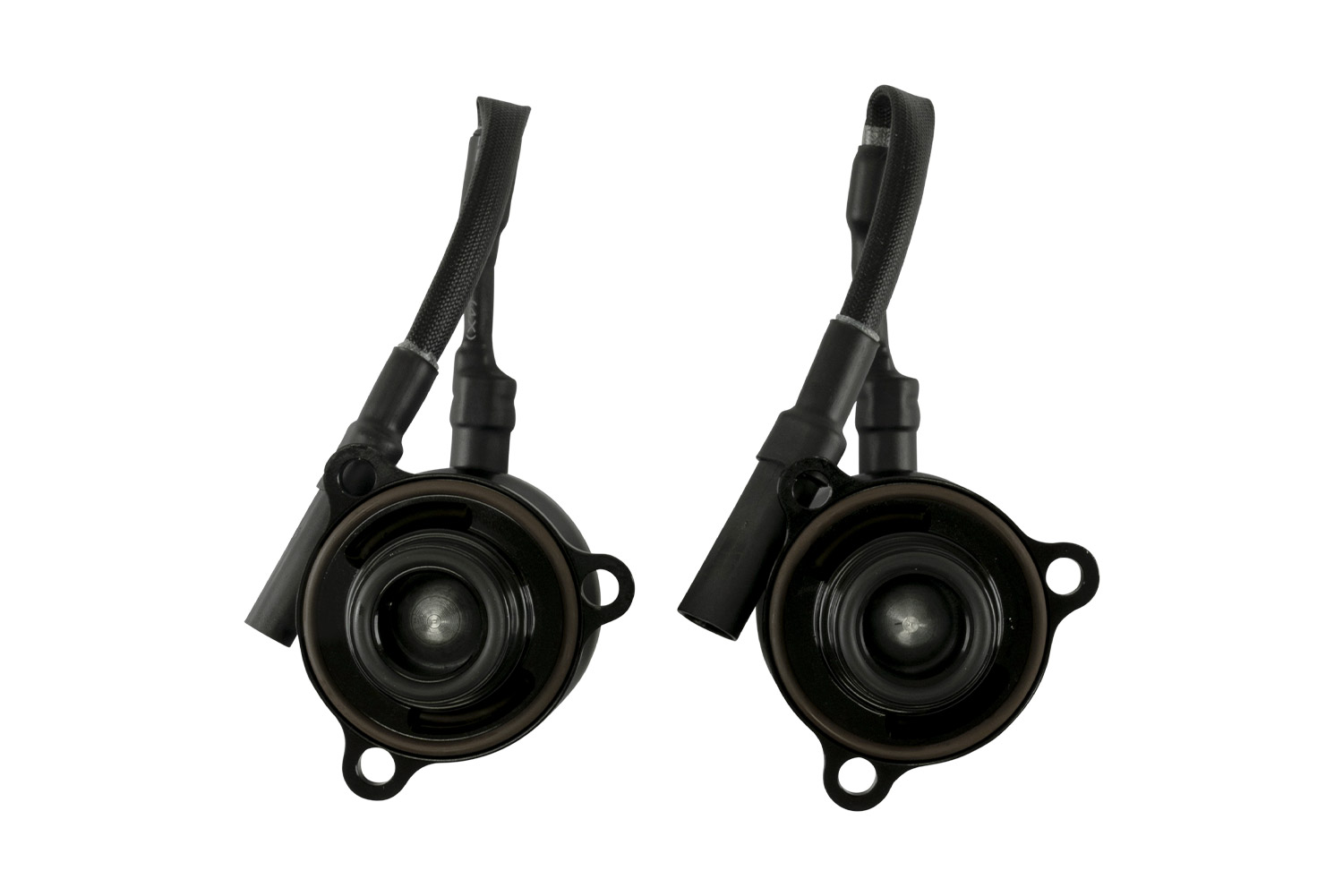

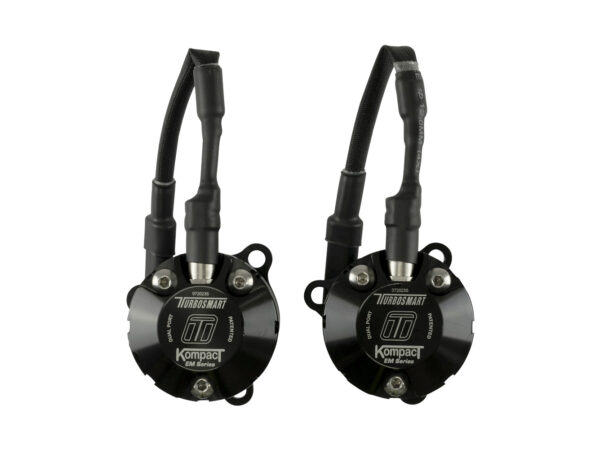

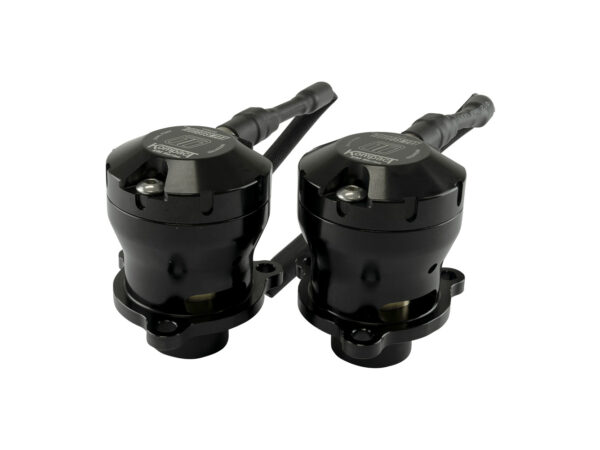

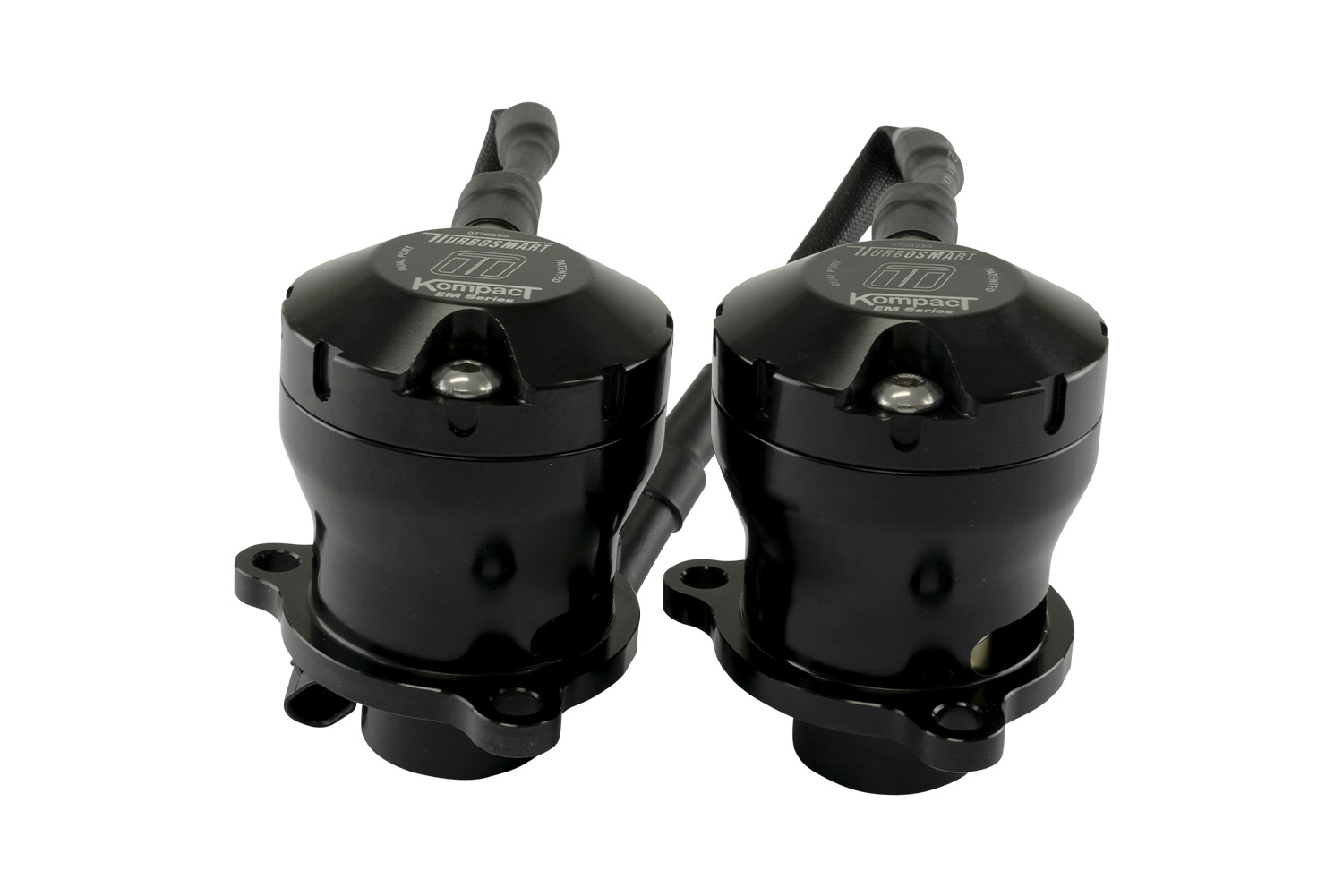

Kompact EM BOV VR25 Dual Port Suit Nissan Z

How does the Turbosmart Valve provide performance benefits?
The Turbsmart Range of Direct Replacement Valves use our Unique Boost-Balance Valve Technology, as well we a Positive Seal O-Ring on the Piston Face and are made from Motorsport Proven & Hand Assembled, Billet Aluminum. These features ensure you the fastest responding valve and incredible boost holding characteristics in a valve this is virtually indestructible.

What is the Turbosmart Boost-Balance System?
Our Valves are designed to ‘actuate, or open’ via a pressure differential, rather than boost alone. This means we can run the lightest possible spring for super-fast response, but it also means both sides of the piston are subjected to the same boost pressure when accelerating and under load. This means no matter how much boost you run; Turbosmart Valves will not open unless you want then to! At any point in time, you have all your boost pushing it closed PLUS the spring itself!

What is the Turbosmart Positive Seal O-Ring, and why does it matter?
As above due to our Boost-Balance technology, the piston of Turbosmart valves are always being pushed into the valve seat when you are accelerating and under load. On Turbosmart valves, unlike others we use a Viton O-Ring on the face of the valve which ensures the best possible seal against the body. This seal means maximum boost pressure at all times & improves boost response.

Can I Vacuum or Smoke test my Kompact Valve?
You can vacuum test these valves, however you will need a hi-flowing mechanical vacuum pump – you cannot use a hand actuated vacuum pump as these do not replicate the flow your valve would see when fitted to an engine meaning you will likely achieve nothing except for a ‘False-Positive’ to a leak test. These do not use an O-Ring on the side of the piston and are not based on a diaphragm like the OE equipment and instead the design focus is on sealing, speed and overall flow. This design and lack of diaphragm or O-Ring also means you cannot use a a smoke test to test of validate a Turbosmart Valve.

How Much Horsepower will these valve handle?
More than you have! Due to the unique Turbosmart Boost-Balance System, you literally can’t have too much power or boost for the Kompact Range of Vales & at no point will they leak based on ‘Too-Much’ anything. The more boost you run, the better they will seal. With that said, extremely modified engines may be able to find the limit of how much these valves can bypass when open & this is the only limit. If you’re at this level you may want to consider a remote mounted valve with more flow potential to avoid audible compressor surge, however at no point will the valve open or vent due to too much boost or power.
