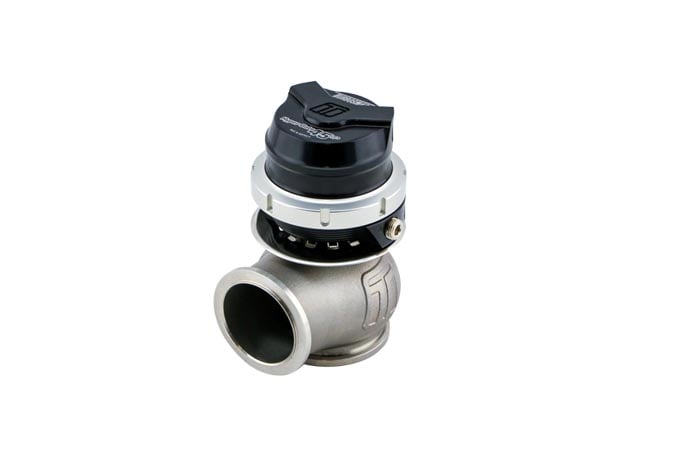

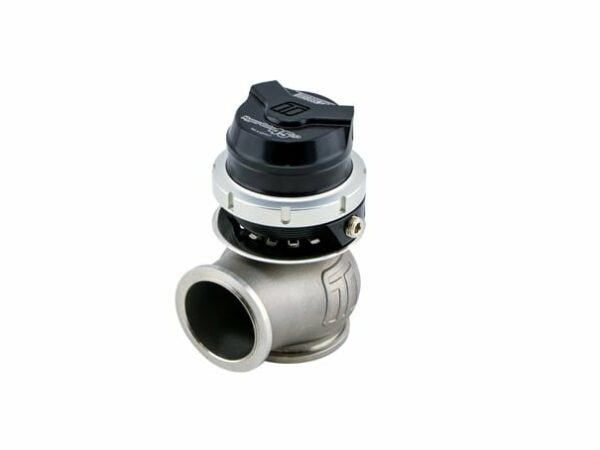

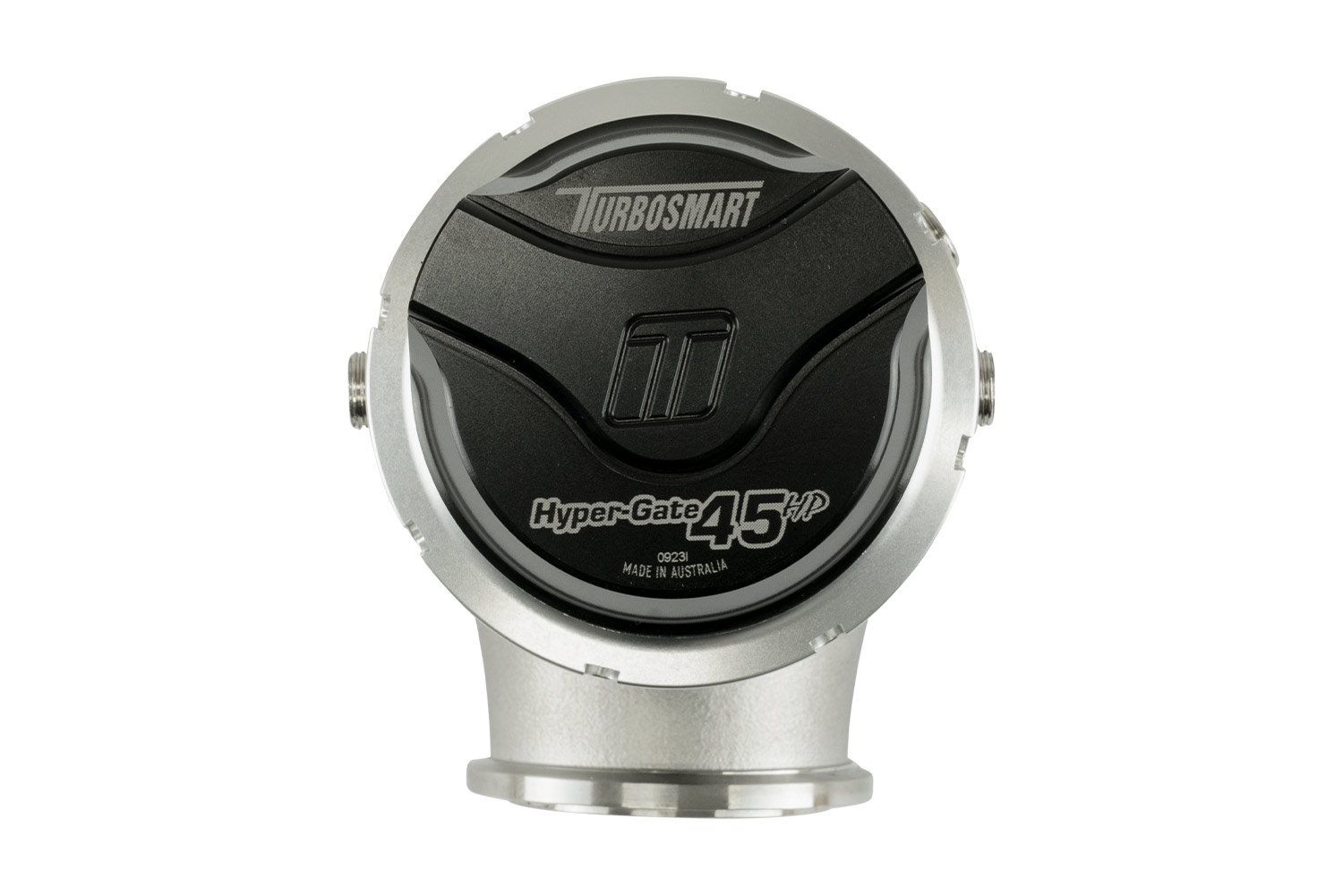

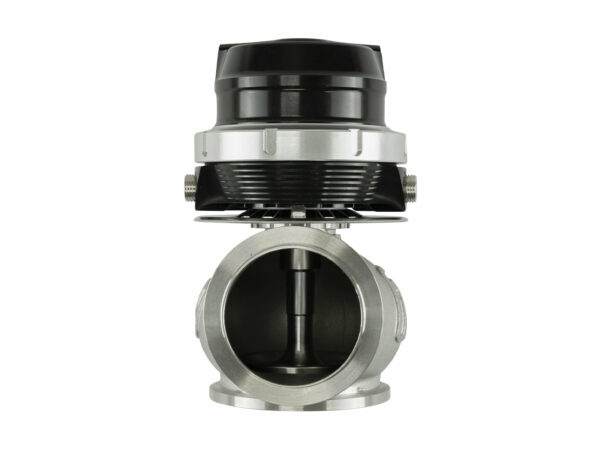

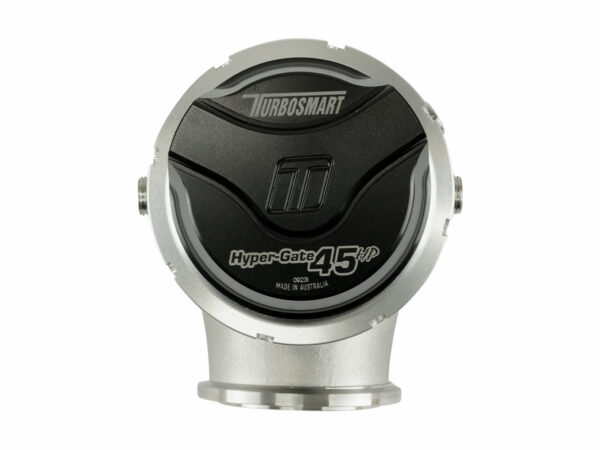

GenV HyperGate45HP ‘High Pressure’ 35psi External Wastegate (Black)

Name: GenV HyperGate45HP 'High Pressure' 35psi External Wastegate (Black)
SKU: TS-0553-1312
Price: 672.17 USD
Availability: BackOrder

$672.17USD (Excl. Sales Tax)

TS-0553-1312

The GenV HyperGate45 HP external wastegate is a motorsport-proven, cost-effective 45mm external wastegate with base spring pressure options of up to 50psi! Add some reference signal manipulation, and you have a serious boost! The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision and 1/8″ NPT reference ports.

Available In

38mm GenV UltraGate38HP – TS-0551-1312
40mm GenV CompGate40HP – TS-0552-1312
45mm GenV Hyperflow45HP – TS-0553-1312

Features
HP Actuator – Up to 50psi Base Pressure
Class Leading Thermal Performance
Class Leading CFD and Bench-Validated Flow Performance
Class Leading Fatigue Resistance
Optional Actuator Liquid Cooling
Rotatable / Clockable Actuator Housing
Nitronic 60 Valve Guide and High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps

Installation guide

Important legal notice (US)

WARNING - Proposition 65 Compliance Statement:

It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Important Emissions Note:

This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.

What makes this an HP (High Pressure) Gate?

The unique actuator housing is slightly taller than a normal GenV gate, allowing for taller, high-pressure spring options. The normal GenV actuator housings have been made as small and low profile as possible while still offering base pressure options up to 26psi – Higher than that, you’ll want an HP version.

What spring options does the GenV HP range have?

You effectively have five options: 10psi, 25psi, 35psi, 40psi and 50psi with the use and combination of just three springs. And remember, this is just base mechanical spring pressure. Higher boost levels can be achieved with boost control or reference manipulation.

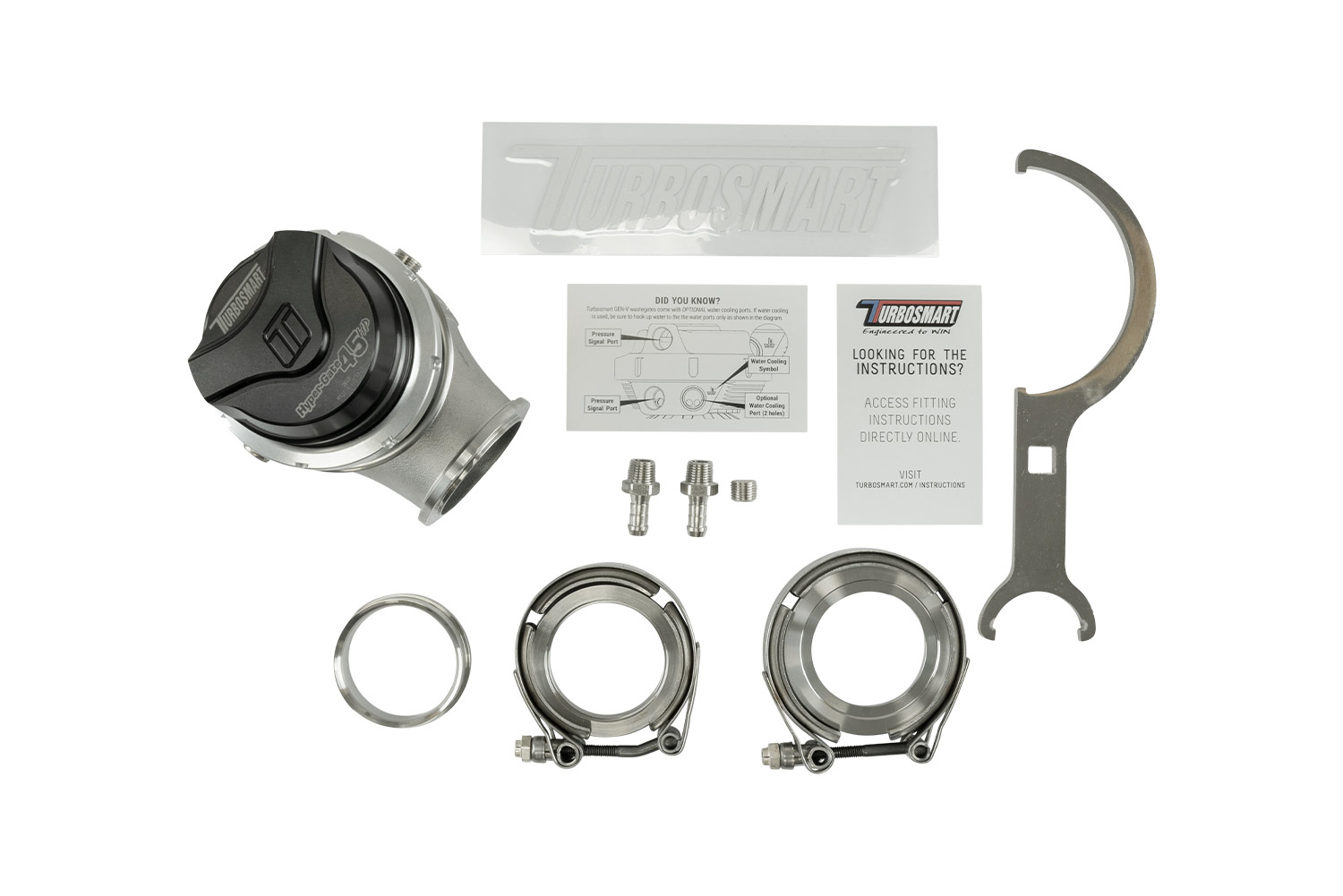

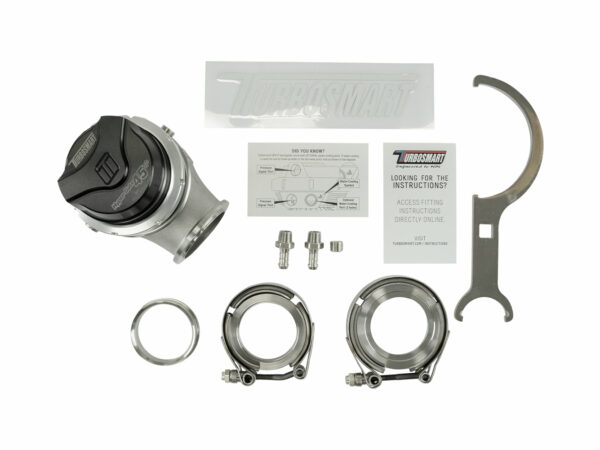

Are all the springs in the box?

Almost – While the 10psi and 25psi come pre-fitted in the gate, there is an optional 40psi spring available as an accessory.

How much boost can the GenV HP Gates handle?

How much have you got? All setups are different, and to answer this question, it’s best to acknowledge how much exhaust back pressure impacts boost control. On an efficient setup, you should be able to achieve between 2 and 3 times the base mechanical spring pressure. However, if you’re working a turbo, efficiency tends to drop off, and back pressure rises, making things much harder. It does come down to your combination.

Do I need to use the Water Cooling?

Not necessarily. The Water cooling feature is there simply as an option. The GenV architecture provides class-leading thermal management, so it’s our experience that most users will never need it. It’s there in case you’re one of the chosen few finding the limits.

What size are the reference fittings?

The boost control reference ports and the (Optional) liquid cooling ports are 1/8NPT. We have a range of AN adapters and high-temperature push-lock fittings available in the Spares and Accessories Tab.

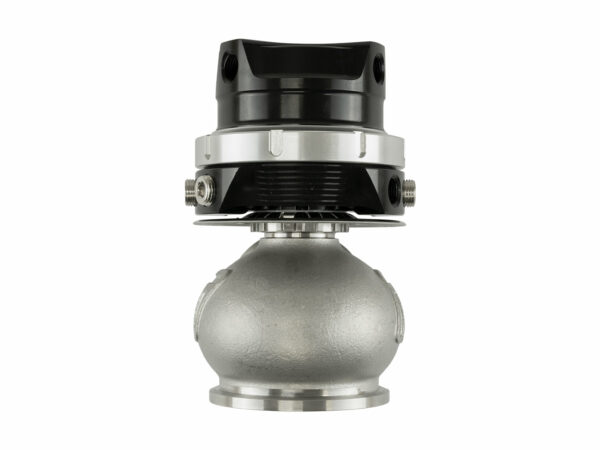

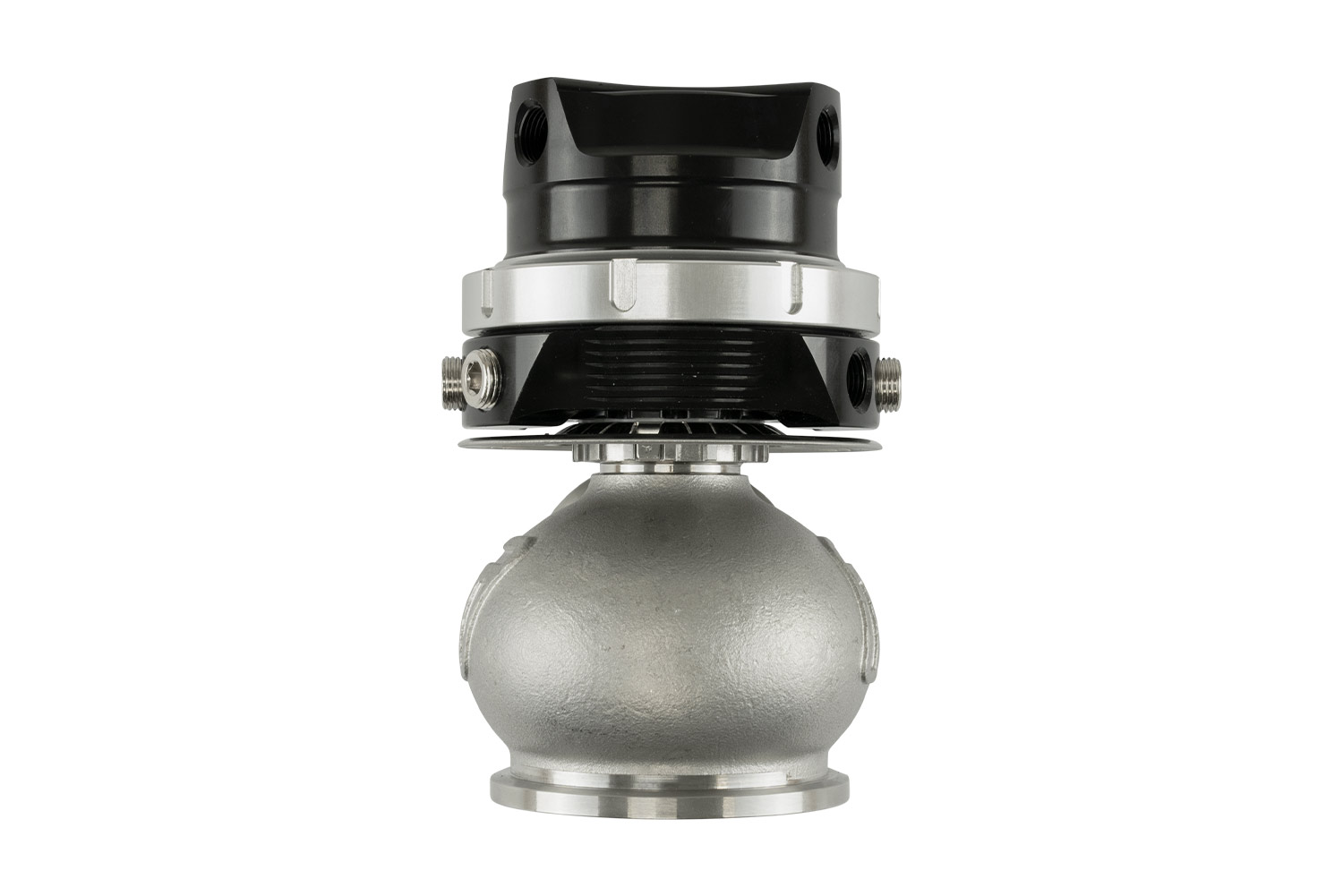

Can I rotate the top housing?

Yes. The modular design of the GenV Range of External Wastegates means you can rotate the actuator housing 360 degrees for virtually unlimited hose routing options.

GenV HyperGate45HP ‘High Pressure’ 35psi External Wastegate (Black)

Related Videos

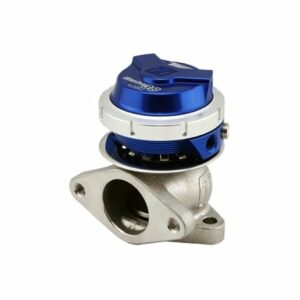

GenV UltraGate38 14psi External Wastegate (Blue)

GenV PowerGate60CG ‘Compressed Gas’ 5psi External Wastegate (Black)

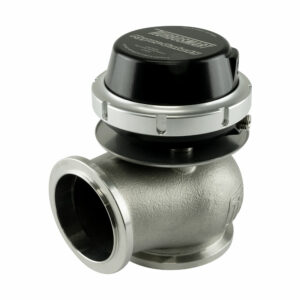

GenV CompGate40 7psi External Wastegate (Black)

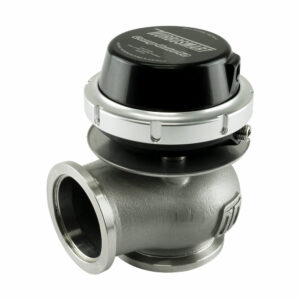

Gen4 CompGate40 7psi External Wastegate (Black)
