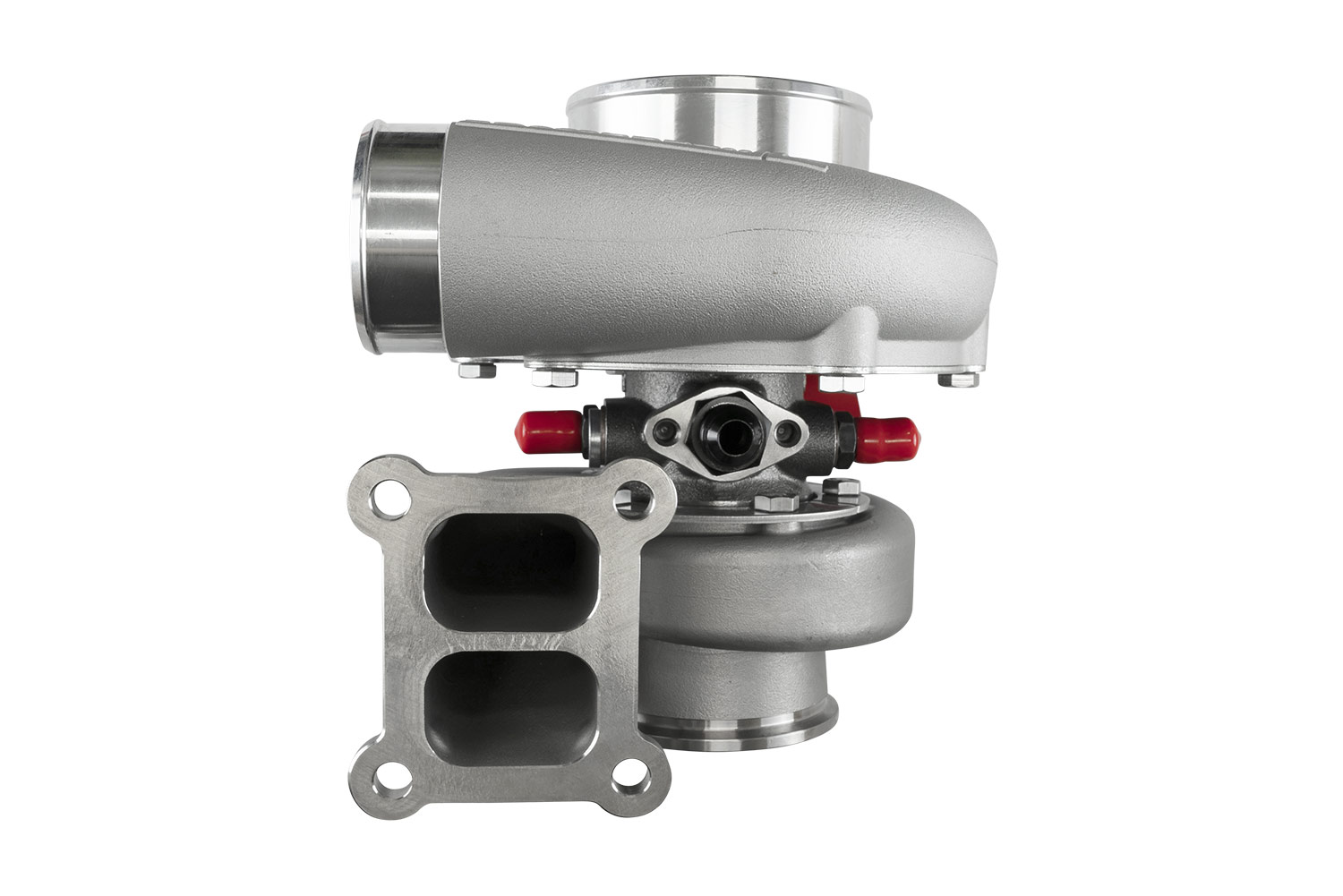

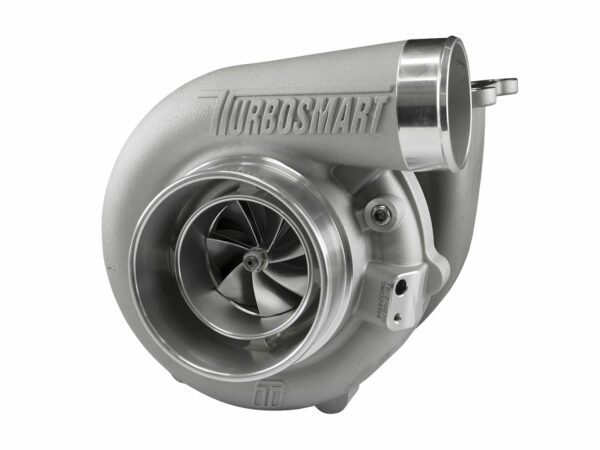

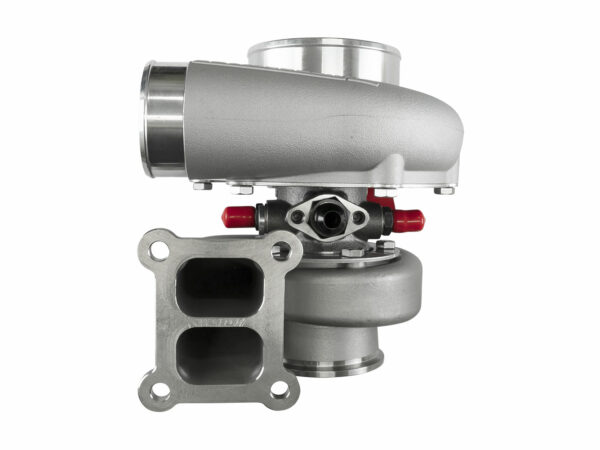

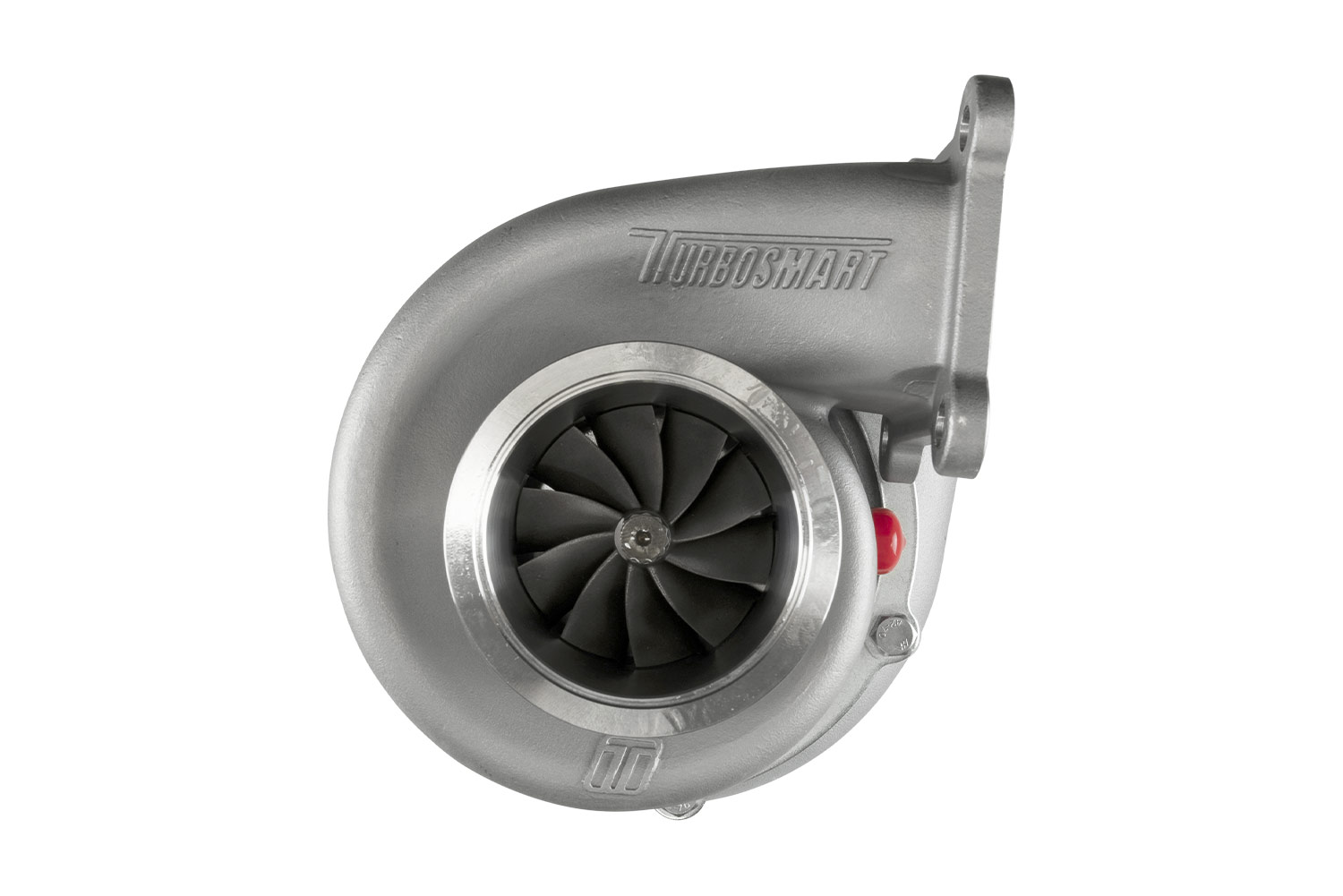

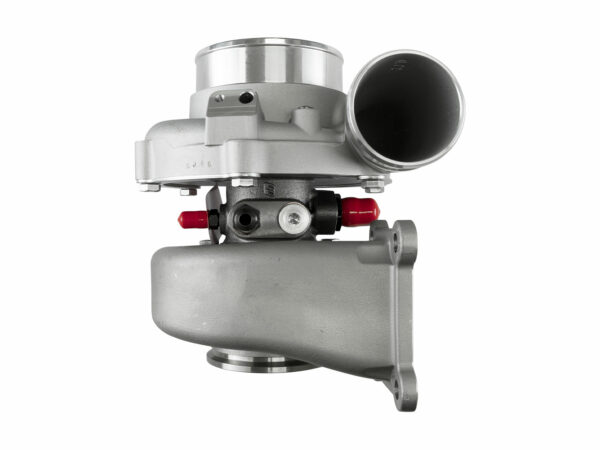

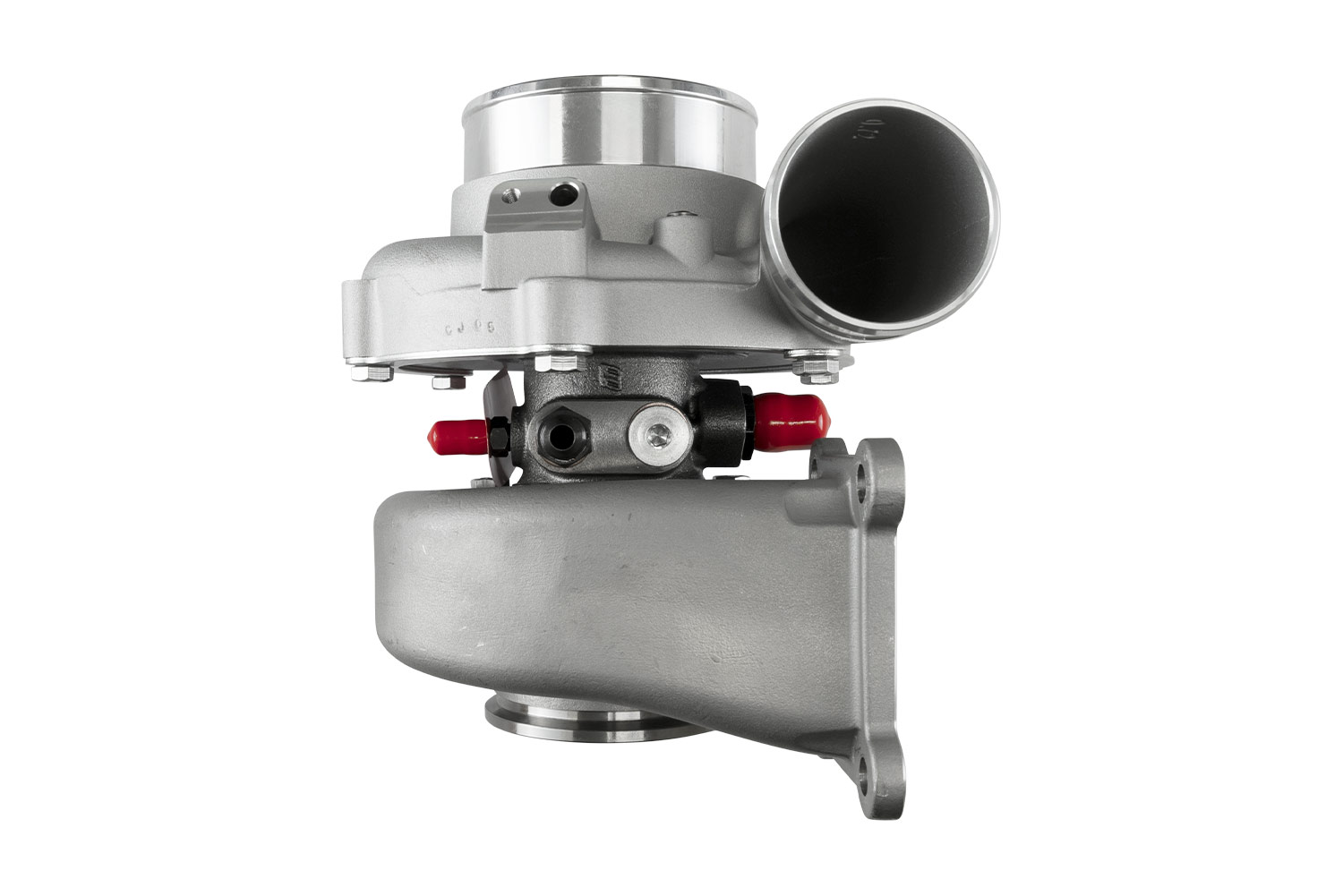

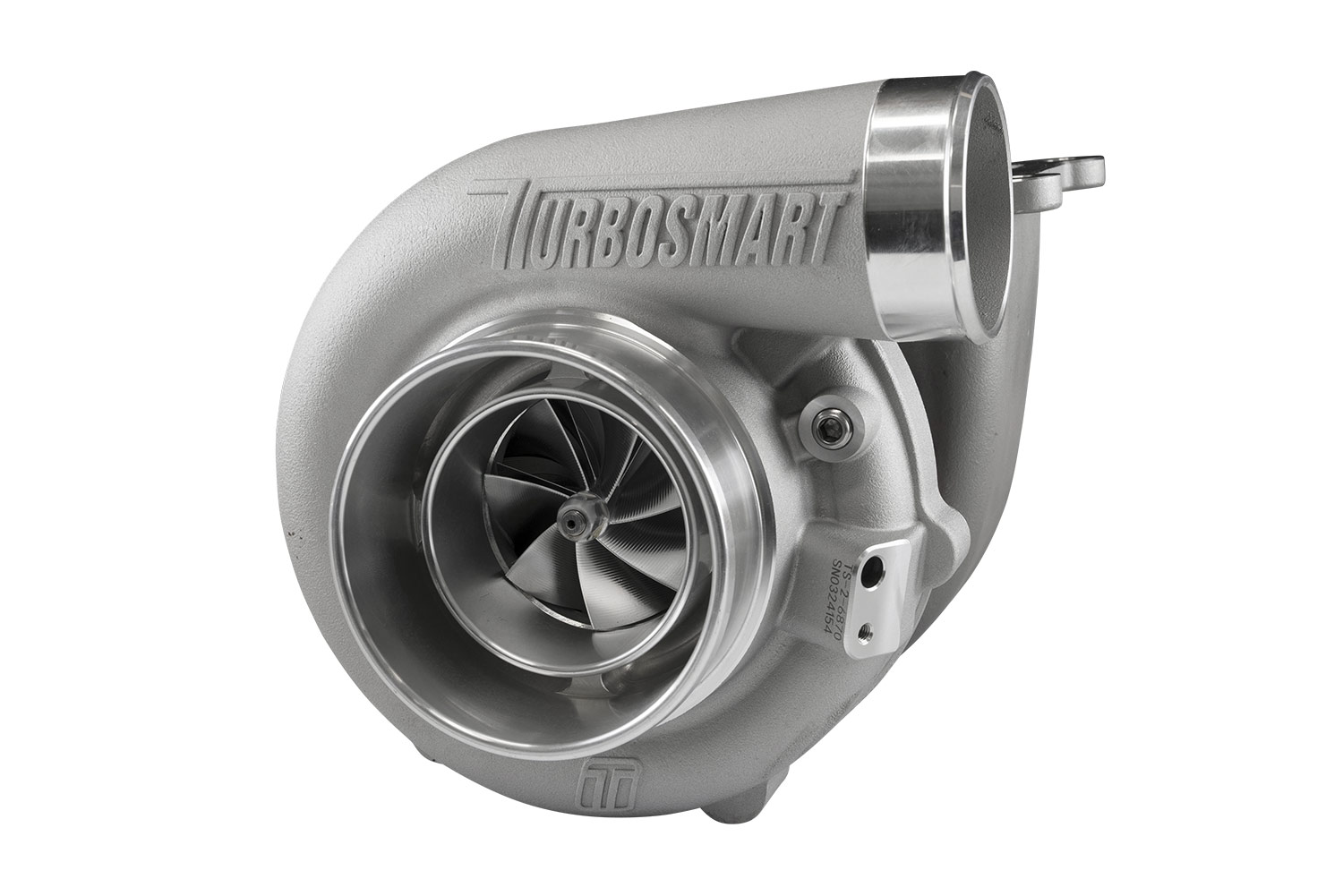

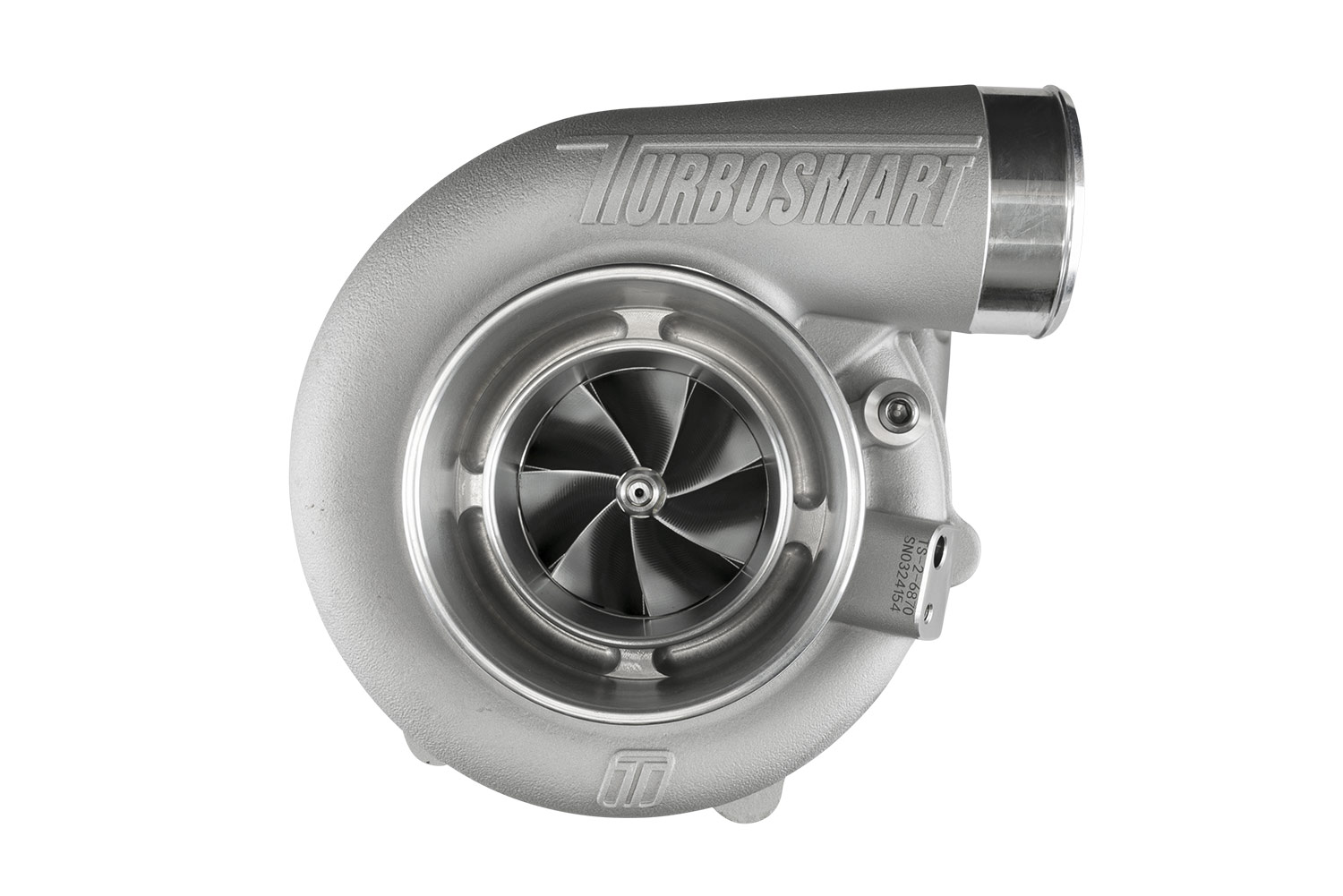

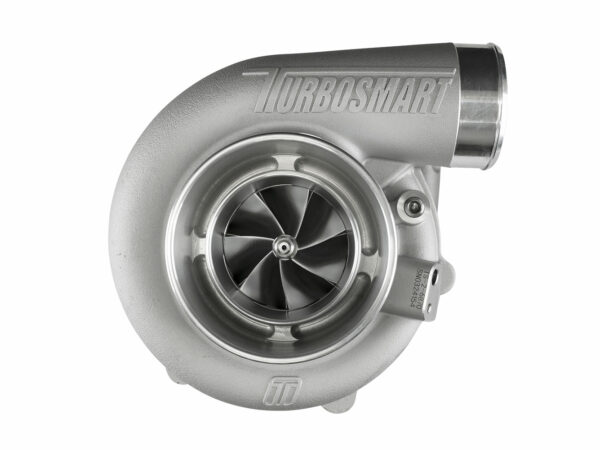

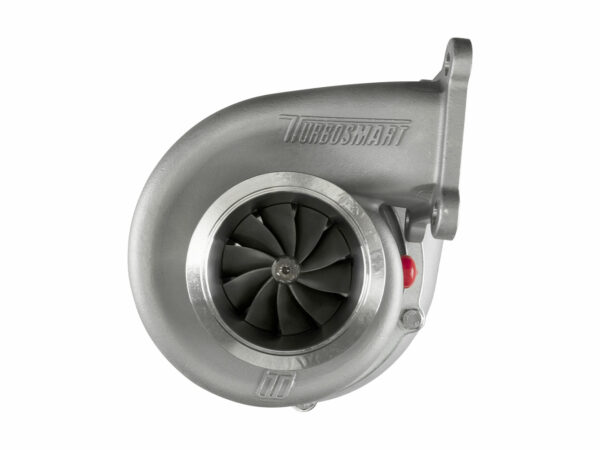

TS-2 Performance Turbocharger (Water Cooled) 6870 (Kompact) T4 Divided 1.00AR Externally Wastegated

$2,622.17USD (Excl. Sales Tax)

TS-2-6870B-D4100E

Smaller, Lighter and Faster – The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.

The TS-2 series is water and oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a central shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds, which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines – While being smaller, lighter and faster in response than other solutions on the market.
Available In
TS-1 oil-cooled turbochargers
TS-2 oil and water-cooled turbochargers
V-Band, various T3 Flange and T4 Flange options
Reverse rotation (Selected Sizes)
Various A/R options
Internal and external wastegate options are available


Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD-driven designed housings for optimal ARs and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing


Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 68mm
Turbine Inlet: T4 Divided Flange
Turbine Exducer: 70mm
Turbine AR: 1.00
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs

Horsepower Rating: 850-990HP

- +

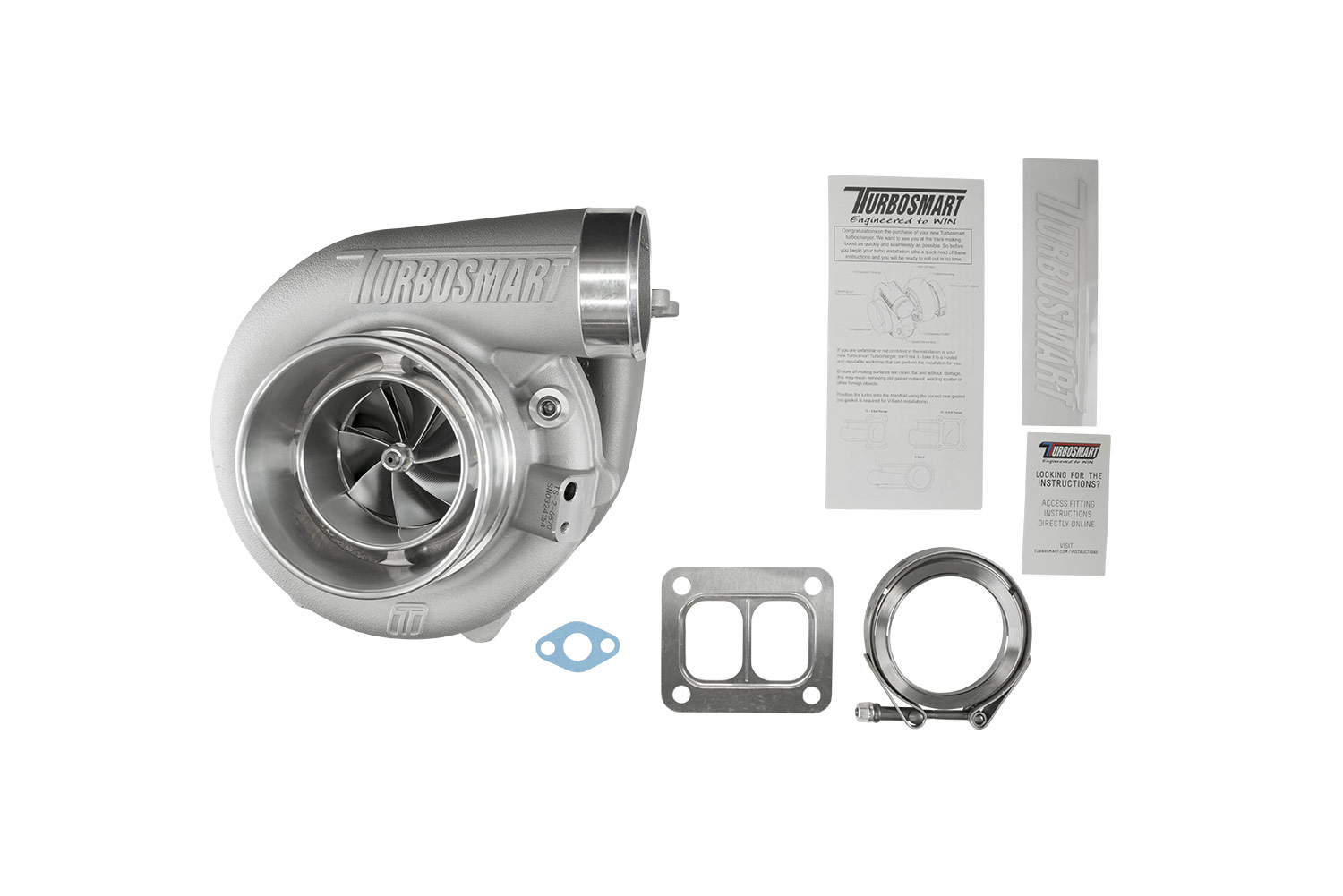

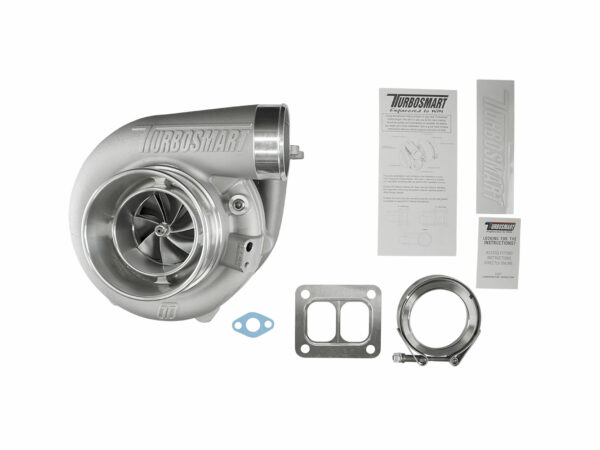

SUPPLIED WITH
1 x Turbosmart Performance Turbocharger
1 x Weld Flange (Turbine outlet)
1 x V-Band Clamp (Turbine outlet)
1 x Oil drain gasket
