When it comes to bolting up a Turbosmart turbo, the connection at the compressor outlet has always been the tricky part, not because of the hardware, but because of the process. Getting it right meant fire, filler rod, and a fabricator's steady hand.
Traditionally, clamping a high-quality aluminium intercooler pipe to a turbocharger's compressor cover required removing the cover from the turbo, cutting the outlet flange off and TIG welding ferrules onto the comp cover. A time-intensive process demanding specialised skills and equipment, that if not done correctly could warp the housing and ruin your turbocharger.
The Turbosmart LockSleeve changes that. It's a weld-free, boost-ready compressor-outlet ferrule that adapts Turbosmart turbochargers to Vibrant HD clamps or Plazmaman clamps, delivering professional results with no TIG torch required.
HOW THE LOCKSLEEVE WORKS

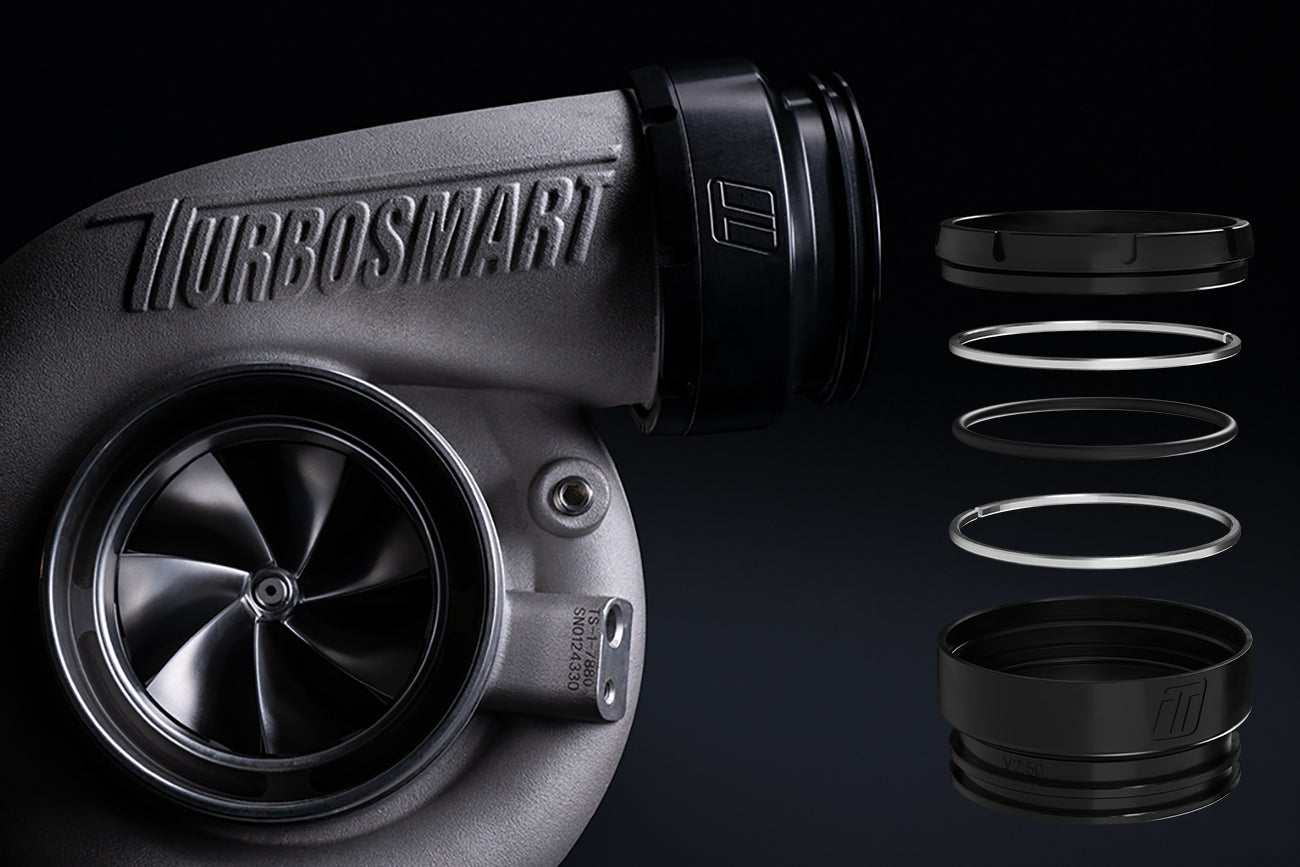

Available to suit both B Frame and C Frame Turbosmart turbocharger compressor covers, the LockSleeve eliminates the need for TIG welding by creating a mechanically interlocked O-ring seal between the compressor cover and the outlet flange, using a precision-machined screw-together ferrule.
As the two halves of the collar are torqued together, the LockSleeve engages an internal O-ring that forms a high pressure seal between the compressor cover and the sleeve. The O-ring delivers airtight integrity while the outer sleeve provides mechanical retention, giving you the reliability of a welded joint with the serviceability of a mechanical fitting.
THE BEST OF BOTH WORLDS
This hybrid approach offers the best of both worlds:
- Leak-free under high boost pressures: The O-ring maintains consistent compression through extreme vibration and thermal cycling.
- No welding required: Eliminates heat-affected zones, oxidation, and material distortion.
- Fully reusable: Remove and reinstall without cutting or re-fabricating the pipe.
- Stress-distributed grip: Clamping geometry secures the tube evenly, avoiding deformation
ENGINEERED TO WIN
The result is a durable, high-integrity connection that performs like a welded ferrule but installs in minutes, can be serviced at the track, and requires only basic hand tools for installation and removal. The Turbosmart LockSleeve is truly engineered to win.
FIND THE RIGHT LOCKSLEEVE FOR YOUR SETUP
No matter your outlet size or preferred clamp, there's a LockSleeve to drop straight into your build.
2.50" Compressor Outlet
TS-199-3019 - 2.50" to 90° Elbow, Vibrant 2.50"
TS-199-3020 - 2.50" to 90° Elbow, Plazmaclamp 2.50"
TS-199-3023 - 2.50" to 90° Elbow, Hose Barb 2.50"
TS-199-3029 - 2.50" to Straight, Vibrant 2.50"
TS-199-3030 - 2.50" to Straight, Plazmaclamp 2.50"
3.00" Compressor Outlet
TS-199-3037 - 3.00" to 90° Elbow, Vibrant / Plazmaclamp 3.00"
TS-199-3040 - 3.00" to 90° Elbow, Hose Barb 3.00"
TS-199-3041 - 3.00" to Straight, Vibrant / Plazmaclamp 3.00"
SKIP THE WELDER, KEEP THE PERFORMANCE
Pick the LockSleeve that matches your outlet size and clamp, torque it together, and set your boost. No fabricator, no downtime, no compromise on the seal. Browse the full LockSleeve range and connect your turbo the smarter way.
