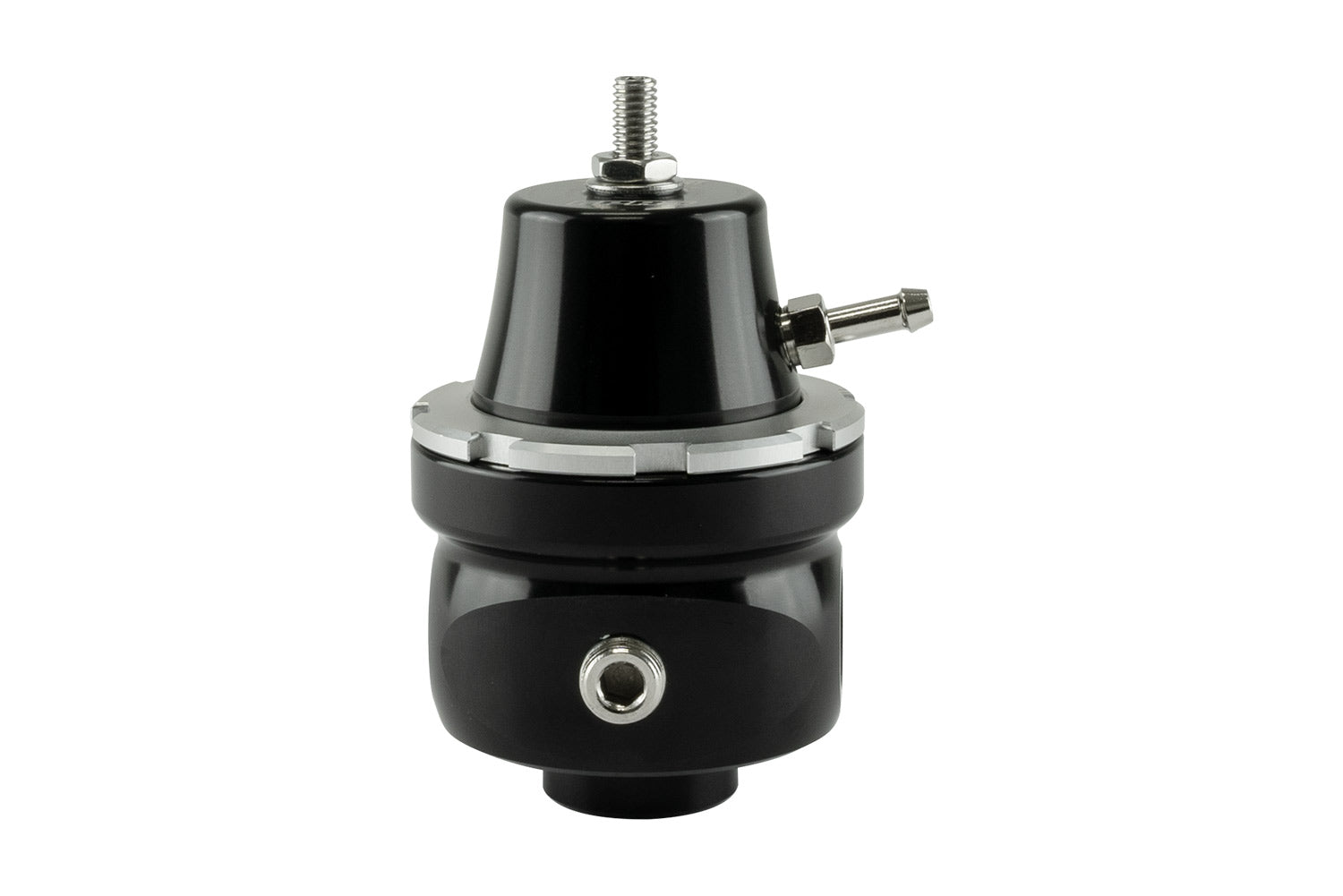

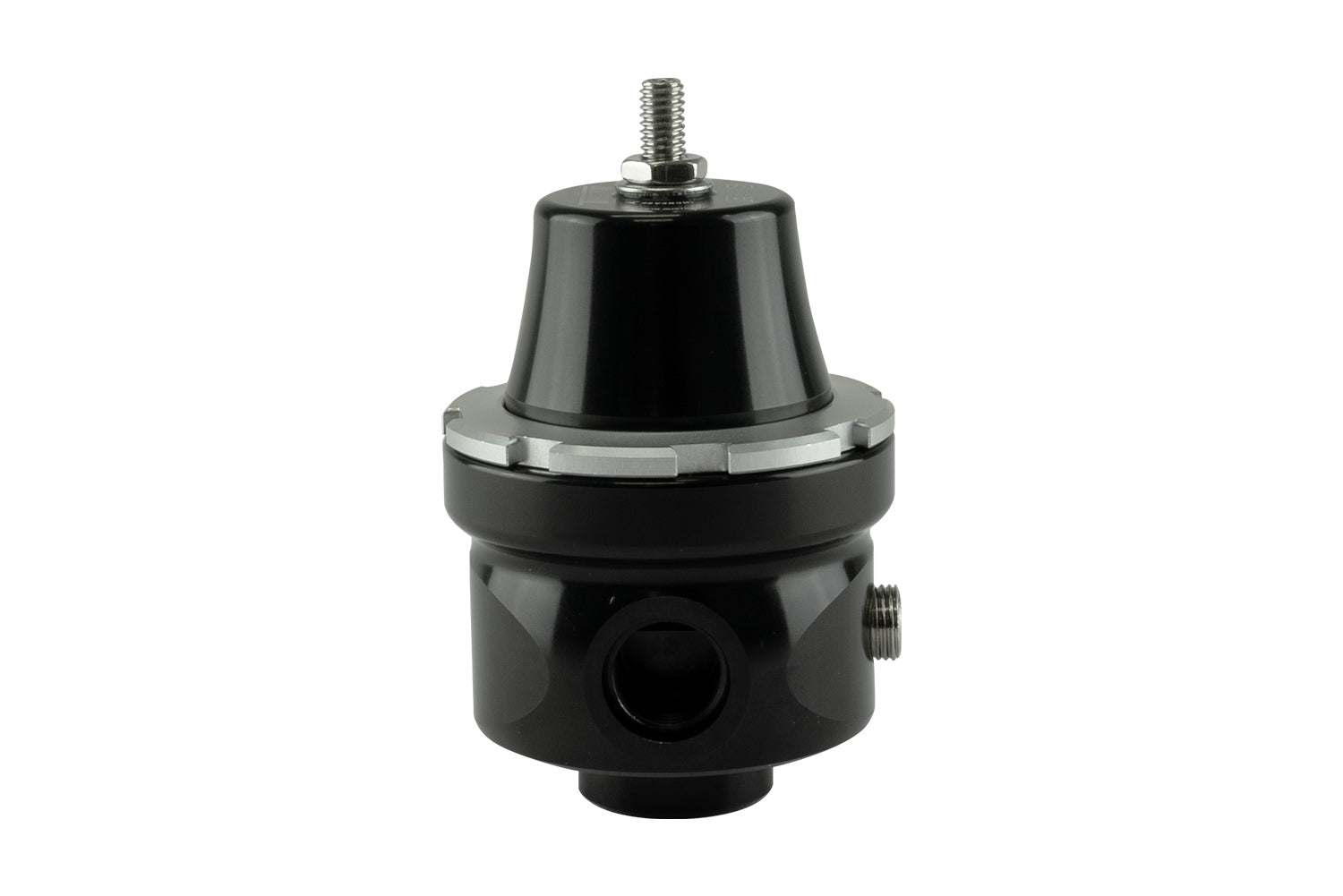

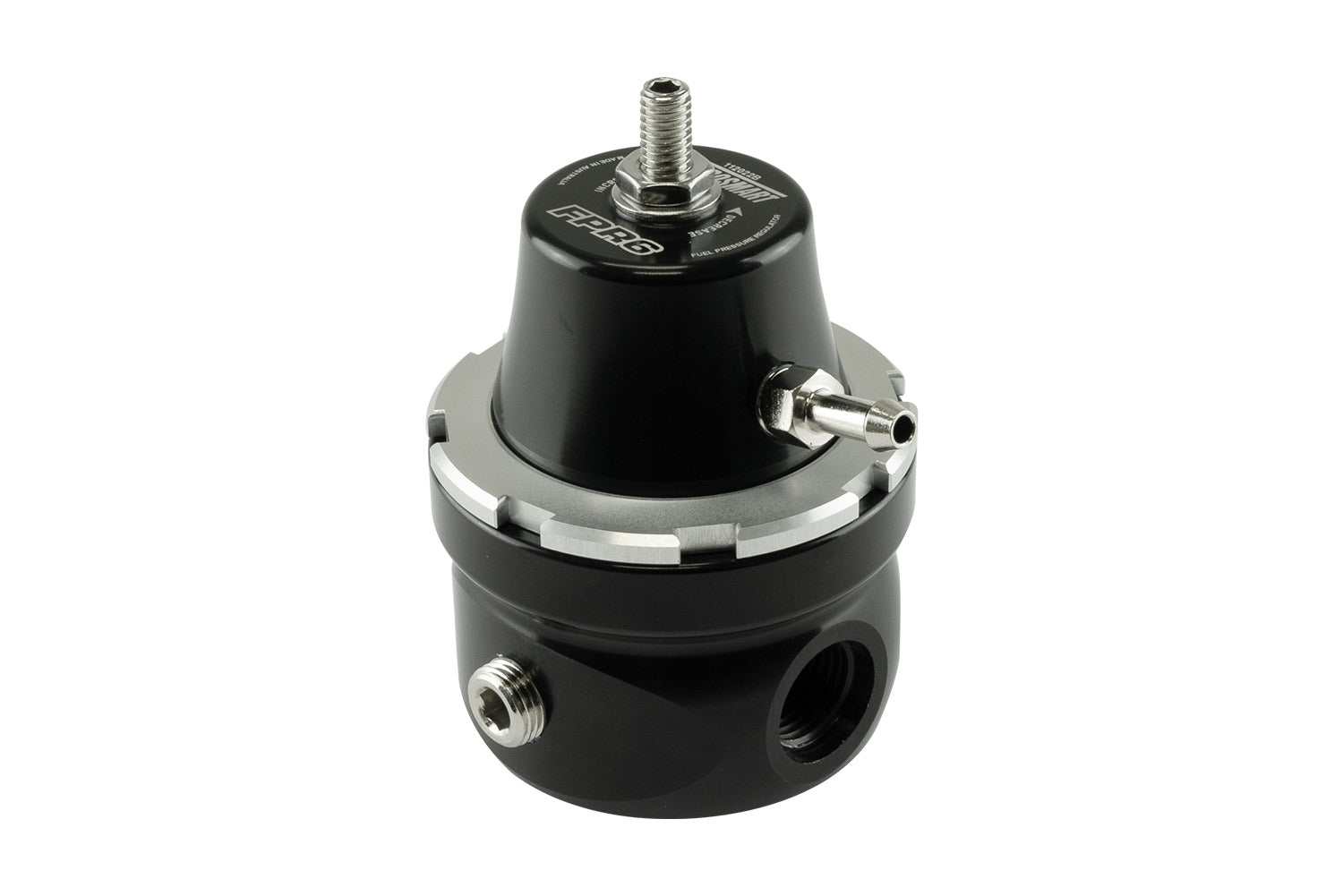

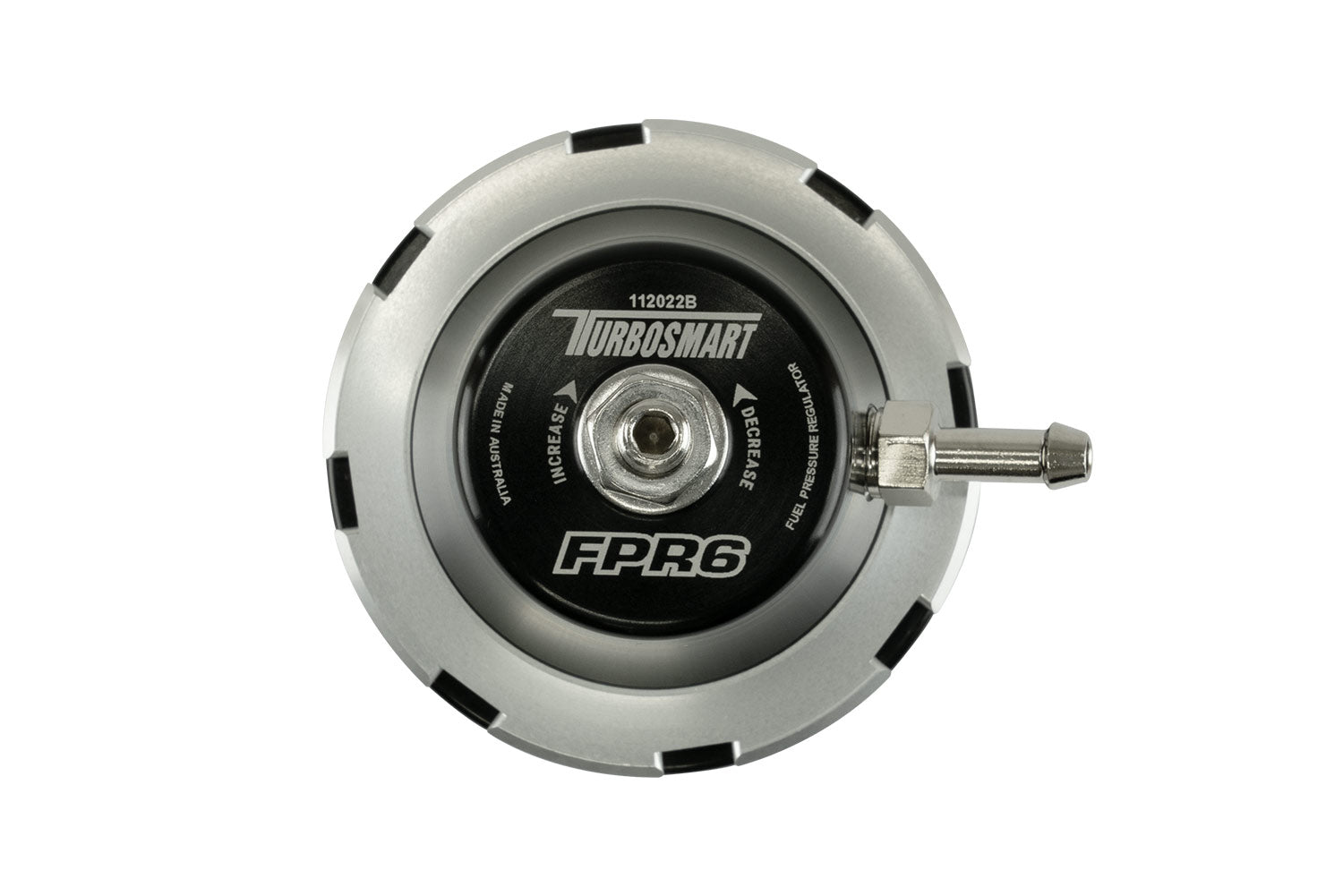

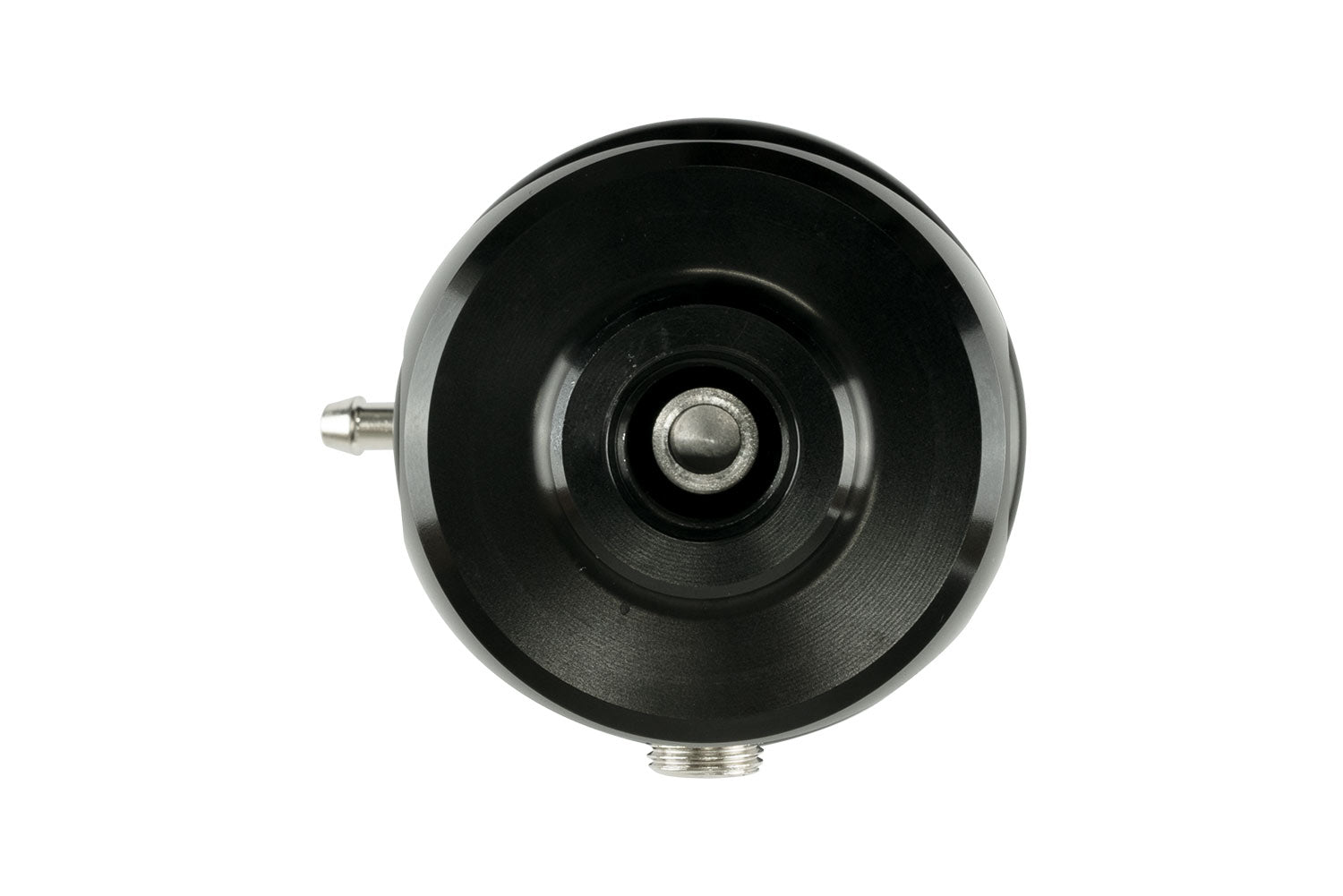

The Turbosmart FPR6 Series provides market-leading fuel control and response via actual 1:1 ratio and superior flow and bypass capacity for vehicles with -6 / 6AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR6 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR6 Range includes a 6AN inlet, outlet and returns port and is Available in Standard (35psi to 80psi) and LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 1200HP systems.Â
FeaturesÂ
Stainless Steel Valve Seat
Suitable for all fuel types
1:1 Class Leading Ratio and Response
Adjustable Pressure
1/8 NPT Gauge / Pressure Sensor Port
Unique Locking Collar Design
Milspec Diaphragm
Detailed Specific Fuel Flow Data and Spec
Available in: FPR6 (Blue) TS-0404-1021 FPR6 (Black) TS-0404-1022 FPR6 (Purple) TS-0404-1023 FPR6 (Red) TS-0404-1024 FPR6 (LP) TS-0404-1022

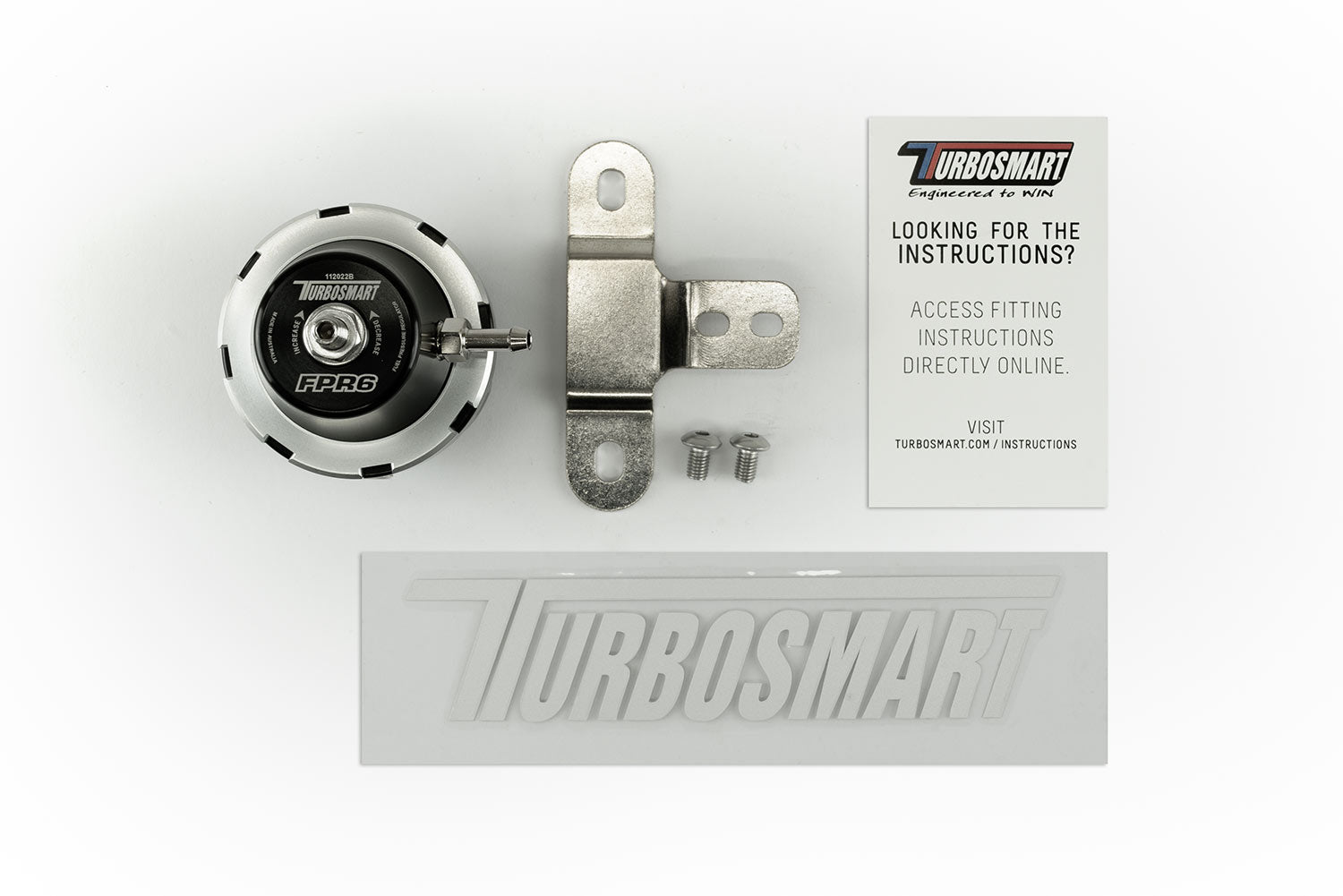

SUPPLIED WITH
Fuel Pressure Regulator
Mounting bracket
2 x M5 Mounting Screws
Turbosmart Decal
Why buy a Turbosmart Fuel Pressure Regulator?
All Turbosmart FPRs are CNC machined in-house from billet aluminium + stainless steel and hand-assembled and tested to ensure maximum precision. Turbosmart FPRs have been designed to provide smooth and stable fuel pressure delivery under all conditions, from idle to full throttle. They are suitable for use with electric and mechanical fuel pumps. The FPR range features an easy screw and lock adjustment and provides a stable 1:1 ratio between fuel and manifold pressure. Each FPR is backed by various accessories such as fuel rail adapters, gauges and fittings to suit the most popular makes and models.
What is a Fuel Pressure Regulator?
A fuel pressure regulator must maintain constant fuel pressure above the intake manifold pressure. Most commonly fitted to the Fuel rail as injectors require a more significant feed pressure than inlet manifold pressure to provide adequate fuel spray for fuel-injected vehicles.
When do I need to Install one? Or upgrade my factory one?
Installing performance fuel injectors or high-flow fuel pumps requires an aftermarket fuel pressure regulator to allow pressure adjustments while maintaining a stable base pressure. They can also maximise a standard fuel system's ability to cope with minor power modifications.
Will Turbosmart FPR work on a Semi Dead-Head System?
Yes. The Turbosmart FPR range is a regulator, and it doesn't matter where you fit it. It will accurately regulate the pressure of the fuel circuit, no matter where on the car you have installed it.
Can These handle Race Fuel?
Yes. With Turbosmart's Unique Diaphragm, stainless salve and seat, we've designed, proven and validated these regulators with the harshest types of fuels around, including Methanol, Lead Race Fuel and E85.
