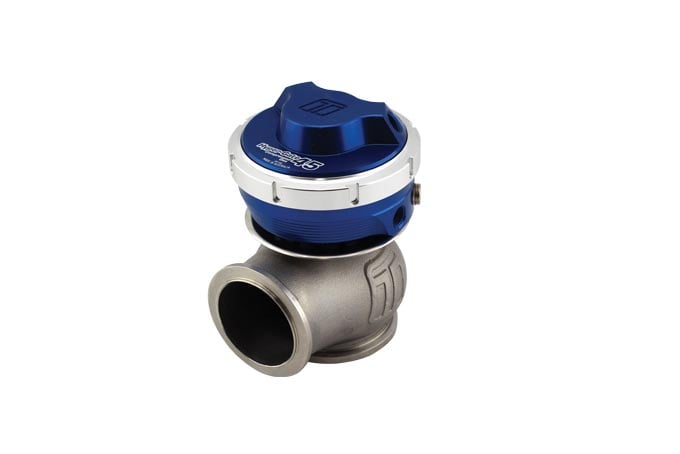

The GenV HyperGate45 Compressed Gas external wastegate is a cost-effective, high-performing external wastegate designed for control strategies that actively bias the top chamber with high pressure for large boost bandwidth operation, such as CO2 drag racing or compressed air WRC applications.
The Compressed Gas range feature an inverted diaphragm to maximize diaphragm life from high-pressure CO2 or compressed air systems.
The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Available In
Black, Blue
Wastegate Position Sensor Version & Upgrade
Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
User Adjustable Actuator Position
Modular Design for Actuator Interchangeability
SUPPLIED WITH
GenV Wastegate unit
All Springs Included in Box
Wastegate Pre-fitted as Per Description
GenV SS316 Valve seat
GenV Inlet & Outlet V-Band Clamps
GenV Inlet & Outlet Flanges
Mounting Bolts and Nuts
Collar tool (master/slave)
4 x 1/8” NPT plugs (1x installed)
2 x 1/8” NPT nipples
Turbosmart Decal
What is a Compressed Gas Wastegate?
A ‘Compressed Gas Ready’ wastegate is designed to accept a high-pressure reference signal to the actuator housing. Co2 is the most common application and allows an independent boost control reference via a separate storage tank & solenoids for more complex boost control strategies.
Do I need to use the liquid cooling ports?
No. It is an option for extreme applications with limited air flow around the wastegate.
What makes it so thermally advanced?
There are several features, some easily overlooked or hidden. Starting with the valve, there are advanced designed features that ensure thermal dissipation. The thermal transfer was reduced with ceramic spacers on either side of the valve guide, and a huge amount of CFD was performed to ensure the most efficient movement of exhaust energy, which also equates to flow.
Can I rotate the top housing?
Yes. The modular design of the GenV Range of External Wastegates means you can rotate the actuator housing 360 degrees for virtually unlimited reference hose routing options.
Will a GenV version fit where my 4th Generation Turbosmart Wastegate fit?
Yes. We ensured the inlet, and outlet fitting orientation matched the previous gates for that reason. The only thing in common between the previous design and this one is the mounting orientation.
How do I change the spring(s)?
You will need the locking collar tool as supplied in the box. You also need to observe the instructions and apply pressure to the top cap before removing the collar - This is part of the design & an important anti-vibration measure.
What size are the reference fittings?
The boost control reference ports and the (Optional) liquid cooling ports are 1/8NPT. We have a range of AN adapters and high temp push-lock fittings available in the Spares and Accessories Tab.
