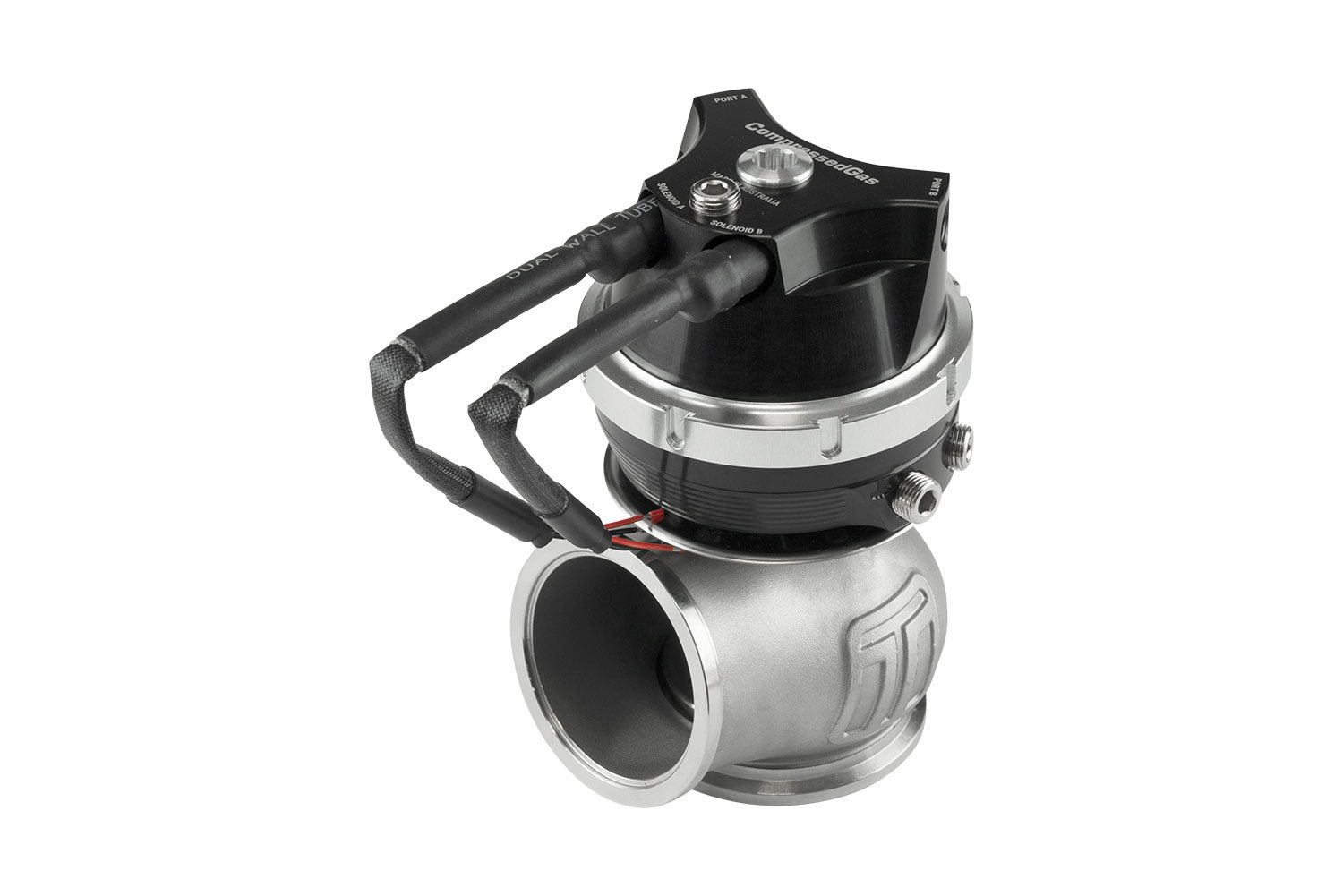

The GenV HyperGate45 WG45CG Compressed Gas external wastegate with integrated boost control. Turbosmart has taken the complexity of out of CO2 boost control by taking the “spill” and “fill” control solenoids as well as the dome pressure sensor required for CO2 boost control and integrating them directly into the wastegate cap. The Compressed Gas / C02 external wastegate range from Turbosmart features an inverted diaphragm suitable for high-pressure C02 or compressed air systems and large pressure differentials.The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimised and validated in-house for maximum flow and thermal management. The GenV range has more features, options and performance than any other gate.A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs. Features Integrated Control In Cap TechnologyBase Spring Pressure 7 PSIClass Leading Thermal Performance Class Leading CFD Driven and Bench Validated Flow PerformanceClass Leading Fatigue ResistanceOptional Liquid Actuator CoolingOptional Position Sensor Available SeparatelyRotatable / Clock-able Actuator Housing50mm V-Band FitmentNitronic 60 Valve Guide and High Temp 347 SS Body17-7 PH Stainless Steel SpringsStrap Type V-band clamps

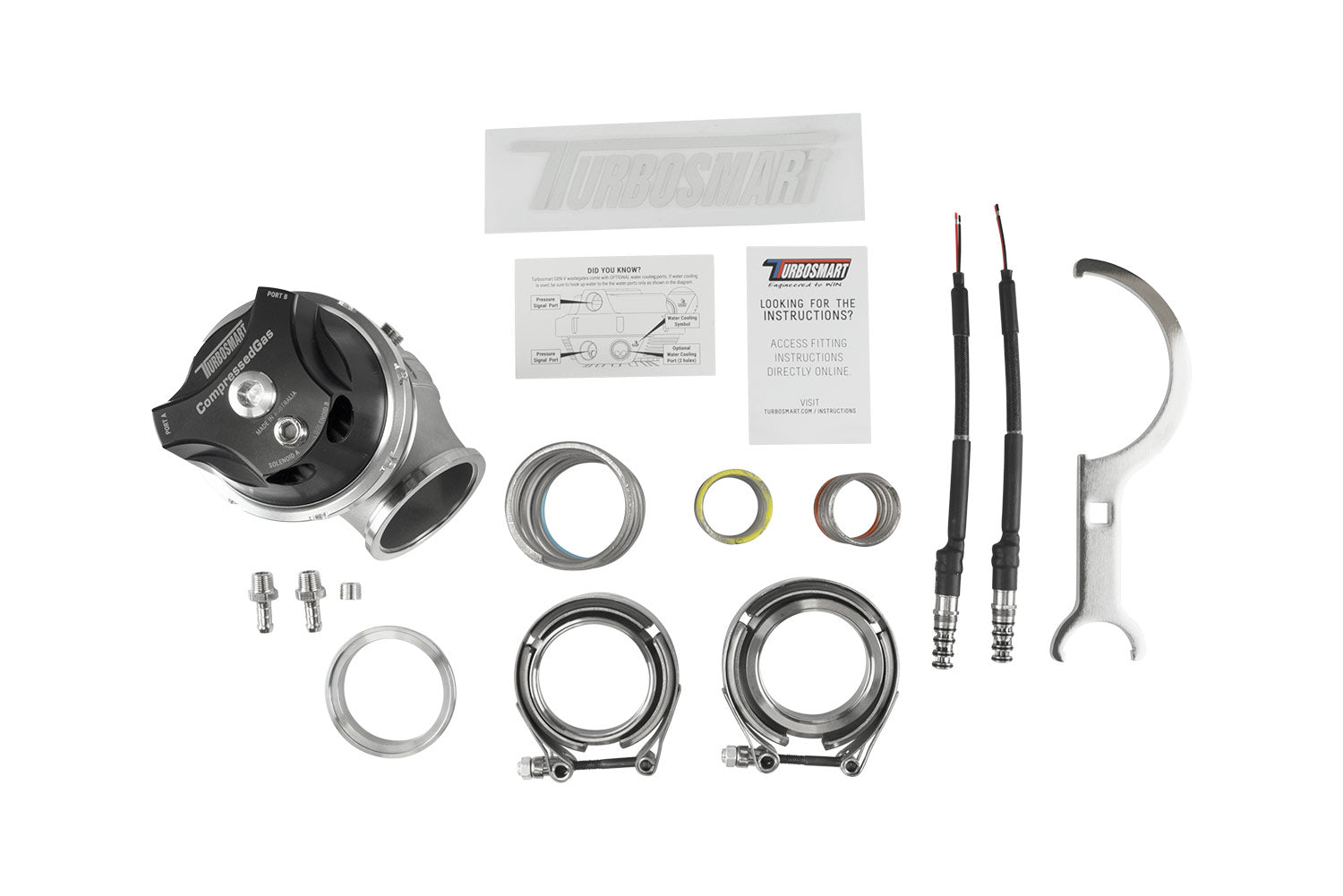

SUPPLIED WITH
GenV Wastegate unit
All Springs Included in Box
Wastegate Pre-fitted as Per Description
GenV SS316 Valve seat
GenV Inlet and Outlet V-Band Clamps
GenV Inlet and Outlet Flanges
Mounting Bolts and Nuts
Collar tool (master/slave)
4 x 1/8” NPT plugs (1x installed)
2 x 1/8” NPT nipples
Turbosmart Decal
What is a Compressed Gas Wastegate?
A ‘Compressed Gas Ready’ wastegate is designed to accept a high-pressure reference signal to the actuator housing. Co2 is the most common application and allows an independent boost control reference via a separate storage tank and solenoids for more complex boost control strategies.
Do I need to use the liquid cooling ports?
No. It is an option for extreme applications with limited air flow around the wastegate.
What makes it so thermally advanced?
There are several features, some easily overlooked or hidden. Starting with the valve, there are advanced features that ensure thermal dissipation. The thermal transfer was reduced with ceramic spacers on either side of the valve guide. A massive amount of CFD was performed to provide the most efficient movement of exhaust energy, which also equates to flow.
Can I rotate the top housing?
Yes. The modular design of the GenV Range of External Wastegates means you can rotate the actuator housing 360 degrees for virtually unlimited reference hose routing options.
Will a GenV version fit where my 4th Generation Turbosmart Wastegate fit?
Yes. We ensured the inlet and outlet fitting orientation matched the previous gates. The only thing in common between the initial design and this one is the mounting orientation.
How do I change the spring(s)?
You will need the locking collar tool as supplied in the box. You also need to observe the instructions and apply pressure to the top cap before removing the collar - This is part of the design and an important anti-vibration measure.
What size are the reference fittings?
The boost control reference ports and the (Optional) liquid cooling ports are 1/8NPT. We have a range of AN adapters and high-temperature push-lock fittings available in the Spares and Accessories Tab.
